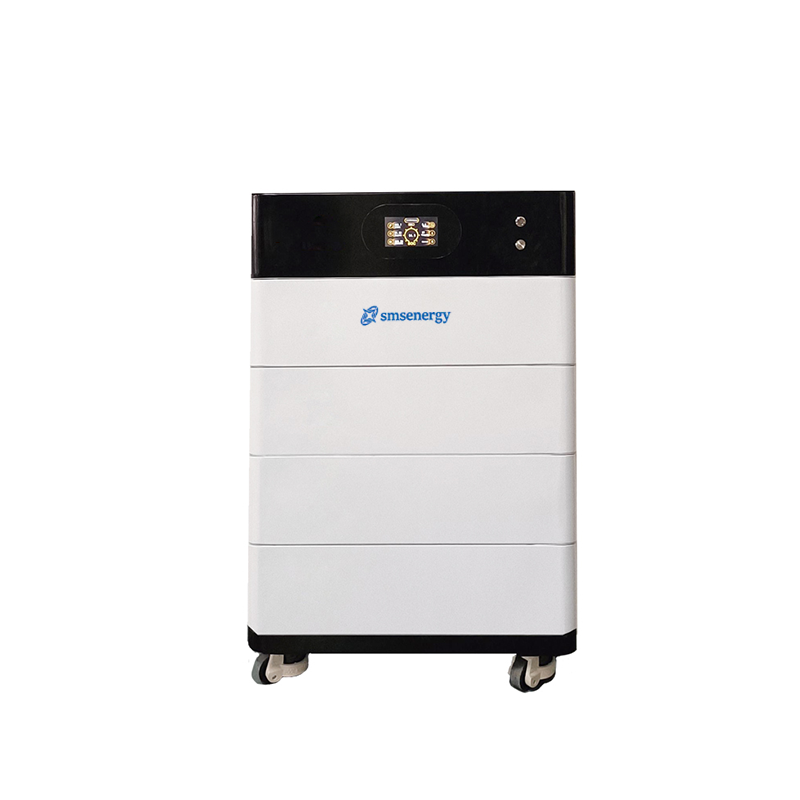

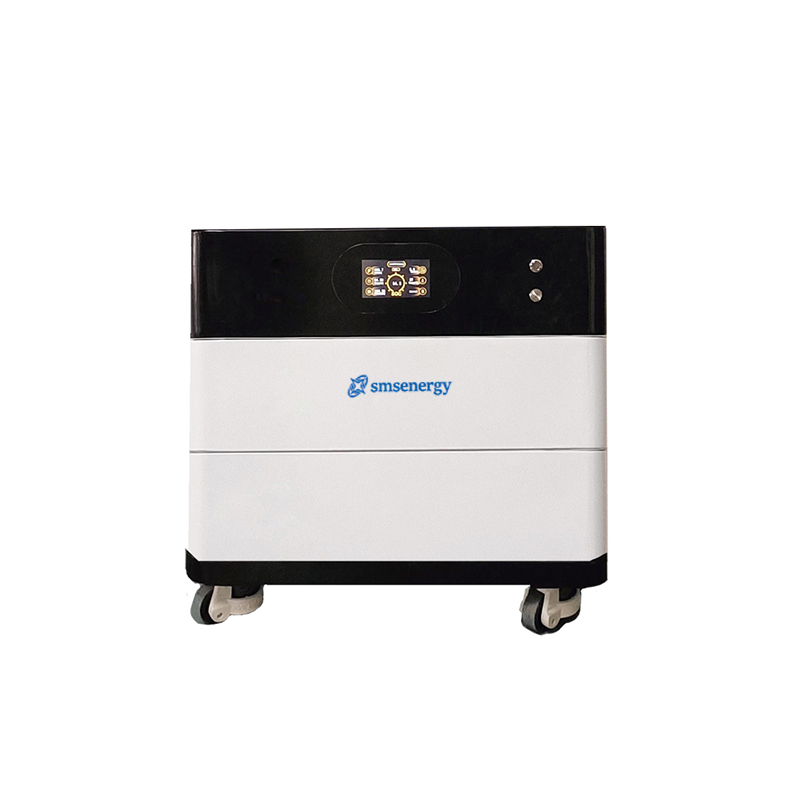

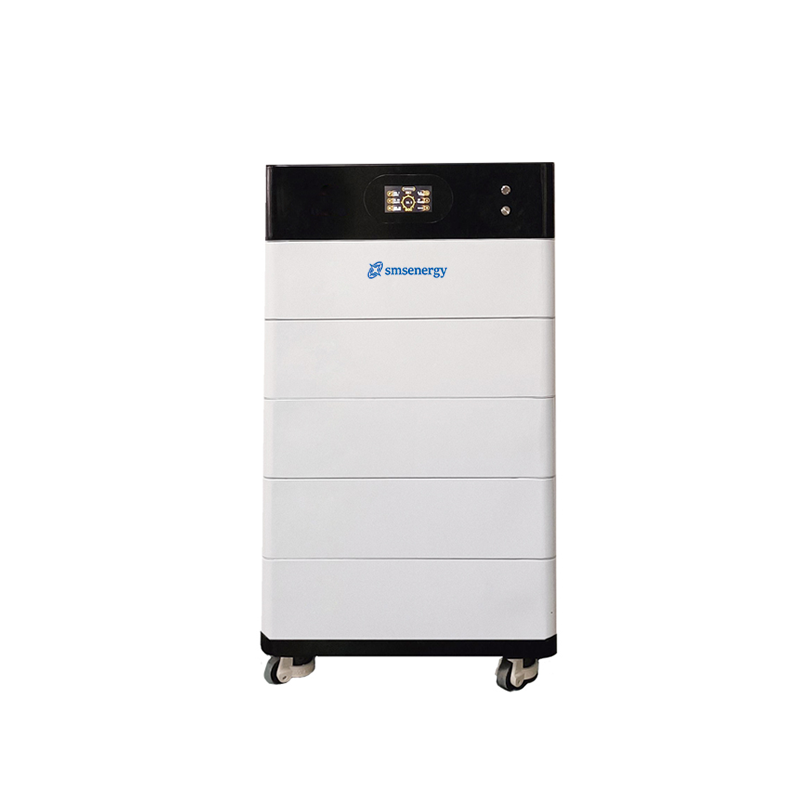

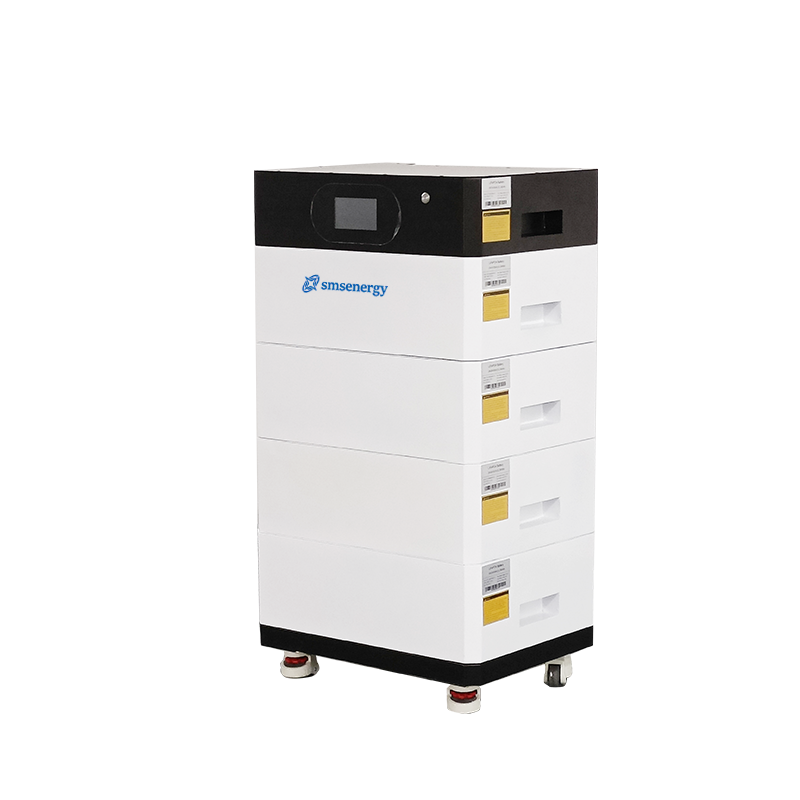

High Voltage Stackable Battery

Basic parameters:

Core material: Lithium iron phosphate

Series parallel mode (S series, P parallel): 16S1P

Nominal voltage: 204V-512V

Nominal capacity: 50Ah

Size (mm): 590*360*600mm

Weight: 95kg

Color: optional

Parallel support: supports parallel wiring terminals

Output port method: wiring terminal

Charging method: CC/CP/VP

Charging current: 0.2C (standard)

Maximum charging current: maximum 0.5C @ 25 ℃

Charging cutoff voltage: 233V/CELL

Discharge method: CC/CP/VP

Discharge current: 0.5C

Maximum discharge current: maximum 0.6C @ 25 ℃

Discharge cutoff voltage: 160V

Communication interface: RS485/RS232/CAN

Charging working temperature: Charging: 0~+50 ℃

Discharge working temperature: Discharge: -20~+55 ℃

Warranty period: 36 months

High Voltage Stackable Battery

Basic parameters:

Core material: Lithium iron phosphate

Series parallel mode (S series, P parallel): 16S1P

Nominal voltage: 204V-512V

Nominal capacity: 50Ah

Size (mm): 590*360*600mm

Weight: 95kg

Color: optional

Parallel support: supports parallel wiring terminals

Output port method: wiring terminal

Charging method: CC/CP/VP

Charging current: 0.2C (standard)

Maximum charging current: maximum 0.5C @ 25 ℃

Charging cutoff voltage: 233V/CELL

Discharge method: CC/CP/VP

Discharge current: 0.5C

Maximum discharge current: maximum 0.6C @ 25 ℃

Discharge cutoff voltage: 160V

Communication interface: RS485/RS232/CAN

Charging working temperature: Charging: 0~+50 ℃

Discharge working temperature: Discharge: -20~+55 ℃

Warranty period: 36 months

Detailed introduction

51.2V Lithium iron phosphate high-pressure stacked series

Product features:

1. High energy density;

2. Excellent low-temperature performance;

3. Specific energy;

4. Good safety performance;

5. Long cycle life;

6. Fast charging and discharging, low discharge rate;

7. Parallel connection, up to 15;

8. Large capacity and long service life;

9. Can be wall mounted and stacked.

Applicable field:

Communication base station
In the data
Communication cabinet
Solar hybrid power system

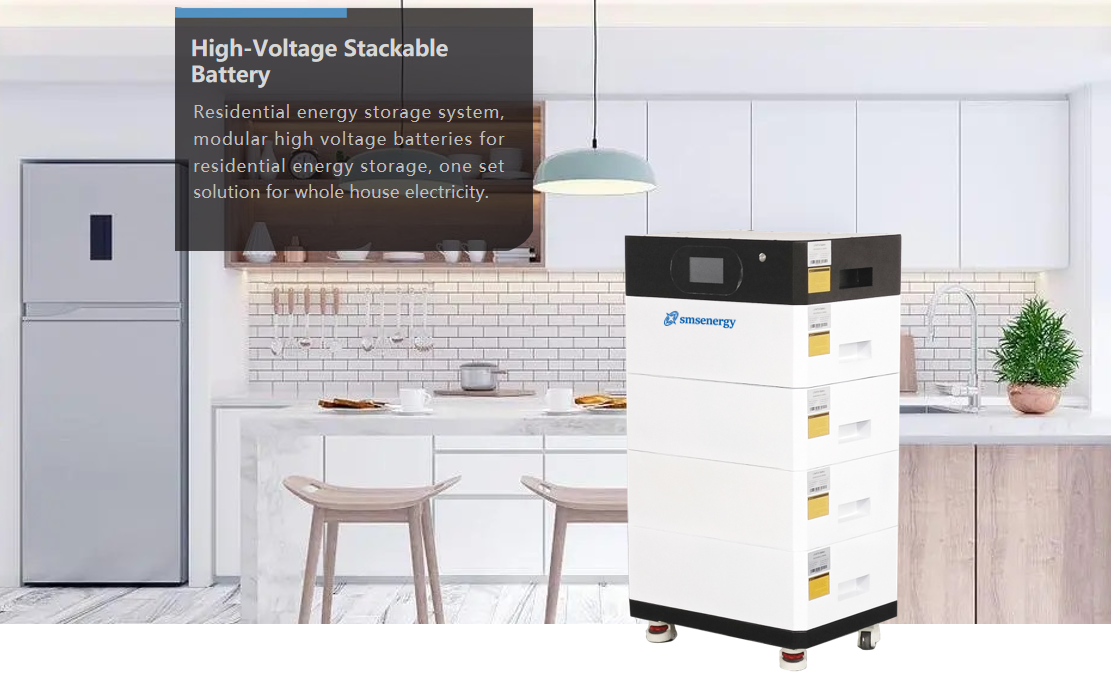

Home energy storage system

Application scenario:

Product parameters:

Item	Parameters
Model No	204V50Ah	307V50Ah	409V50Ah	512V50Ah
Number Of Battery Packs	2	3	4	5
Rated Voltage	204V	307V	409V	512V
Dimensions(LWH)	590360600mm	590360750mm	590360900mm	5903601050mm
Rated Capacity	50Ah
Rated Charge Capacity	10.2kWh	15.35kWh	20.5kWh	25.6kWh
Weight(kg)	95kg（about）	133kg（about）	172kg（about）	212kg（about)
Max. Charging Voltage	233V	350V	467V	584V
Cut-off Discharge Voltage	160V	240V	320V	400V
Operation Temperature	Continuous:25A Maximum:50A
Discharge Current	Maximum Continuous Current:50A
Operation Temperature	- 10℃~60℃ @ 60±20% Relative Humidity
Storage Temperature	0℃~45℃ @ 60±20% Relative Humidity
Protection Level	IP21
Communication Method	CAN/RS485/WIFI/4G/Bluetooth
Cycling Life	＞6000cyc@80%DOD,25°C,0.5C
