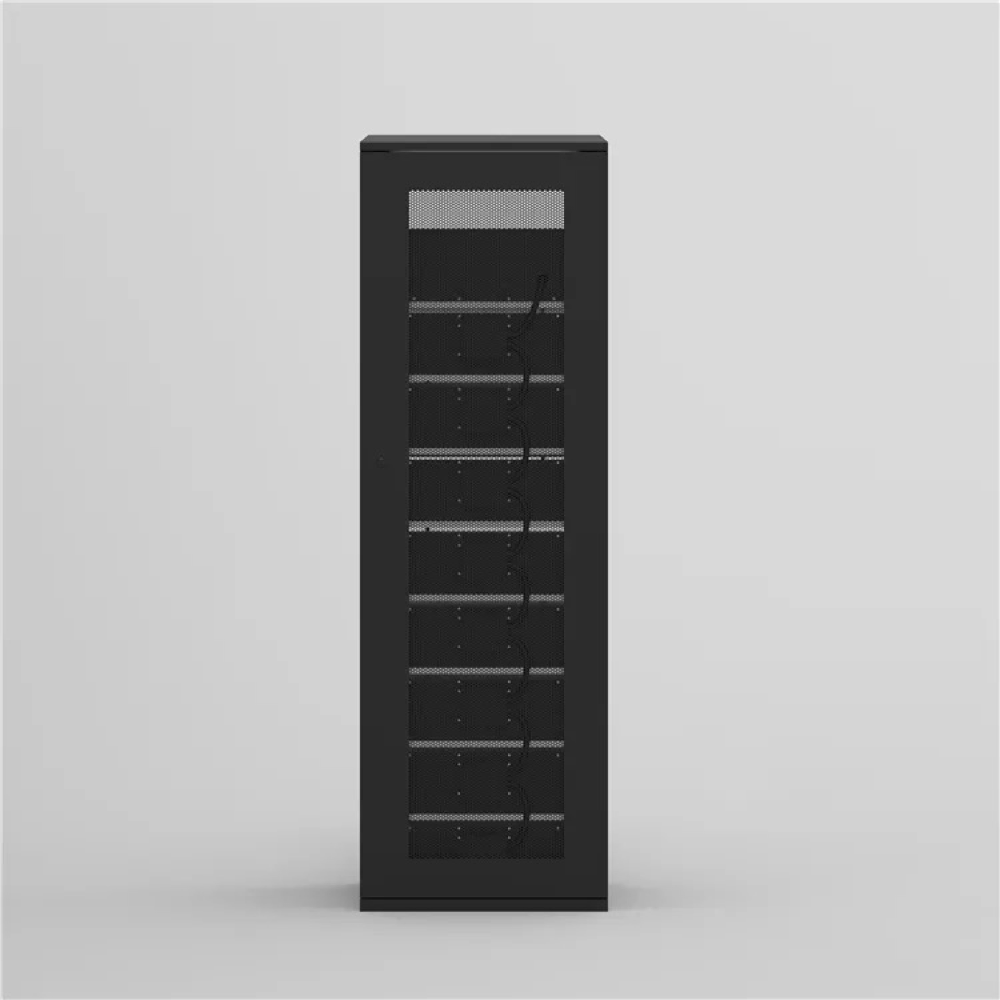

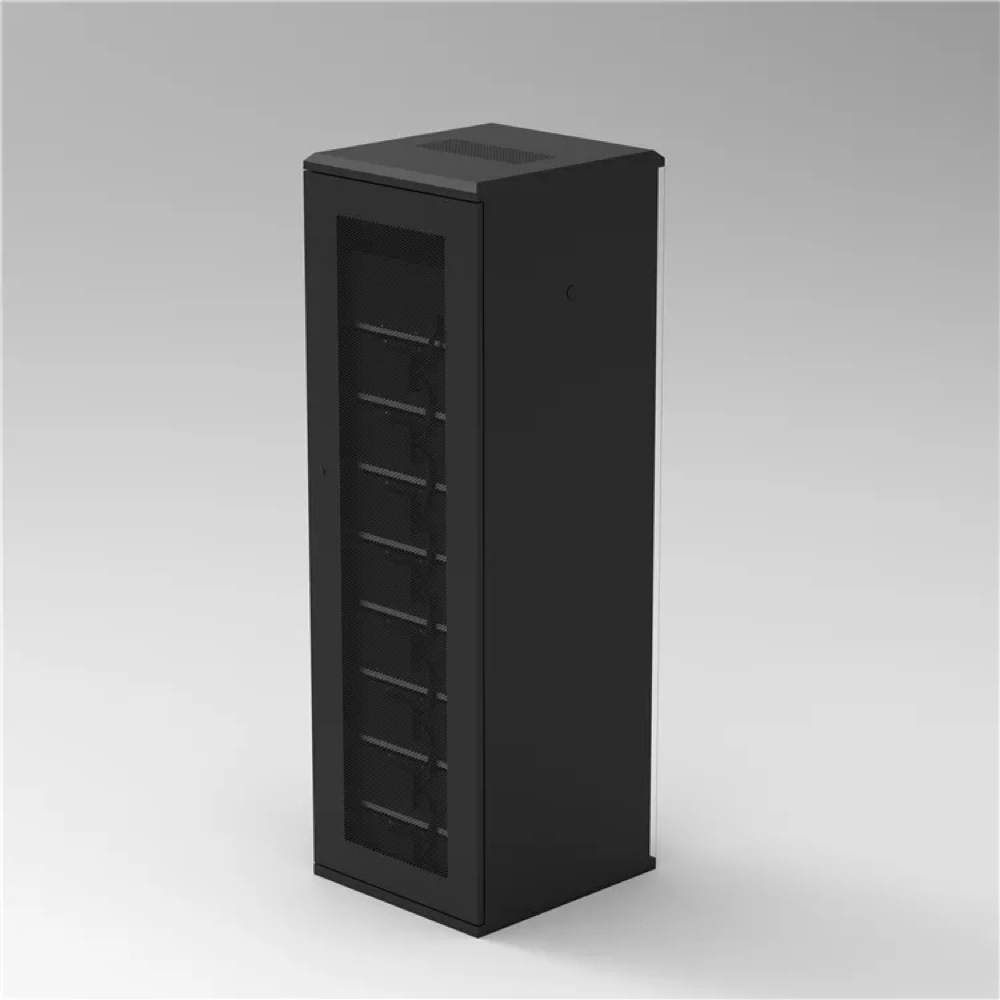

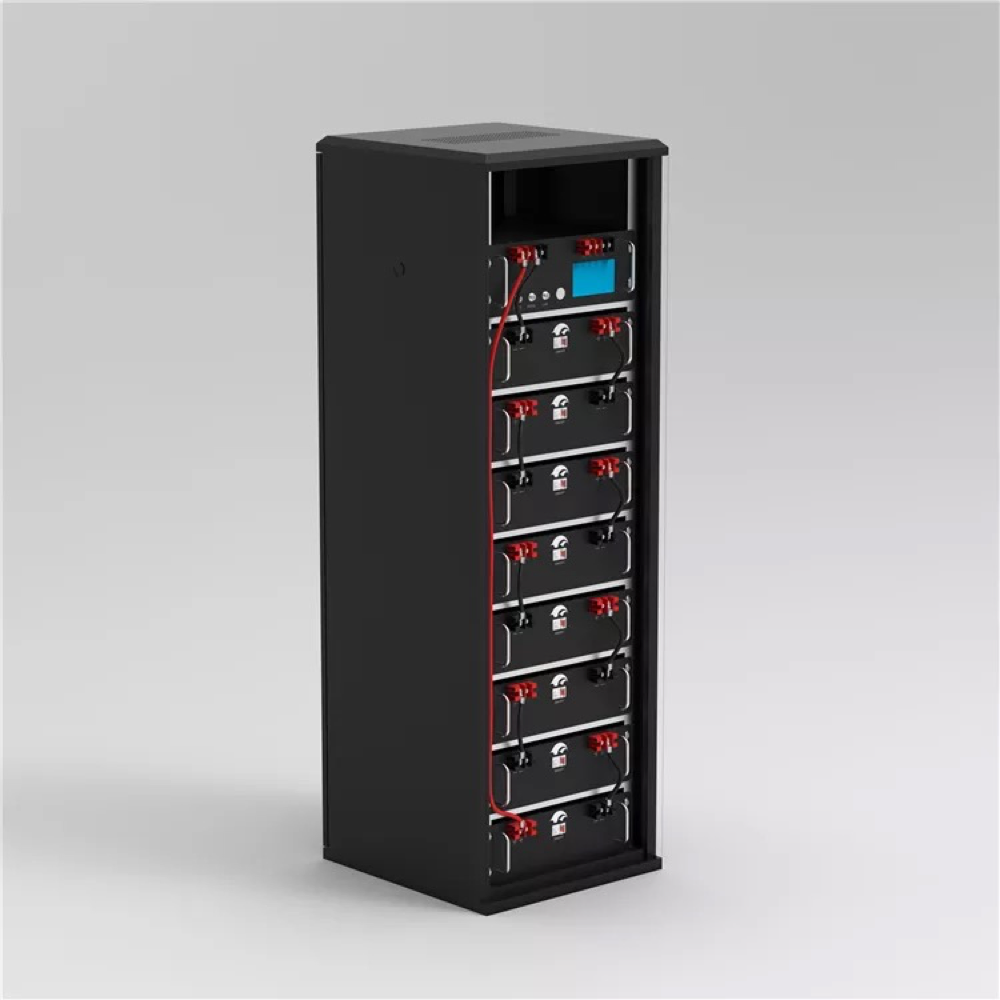

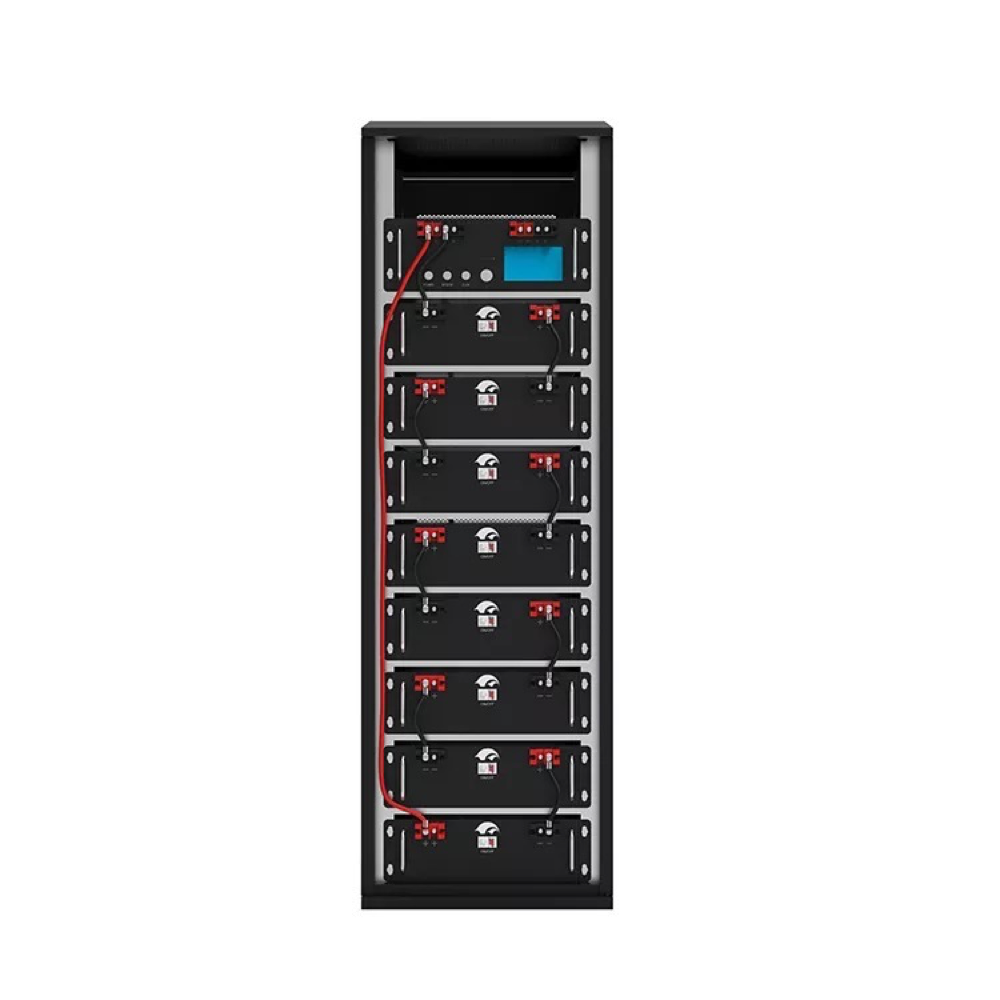

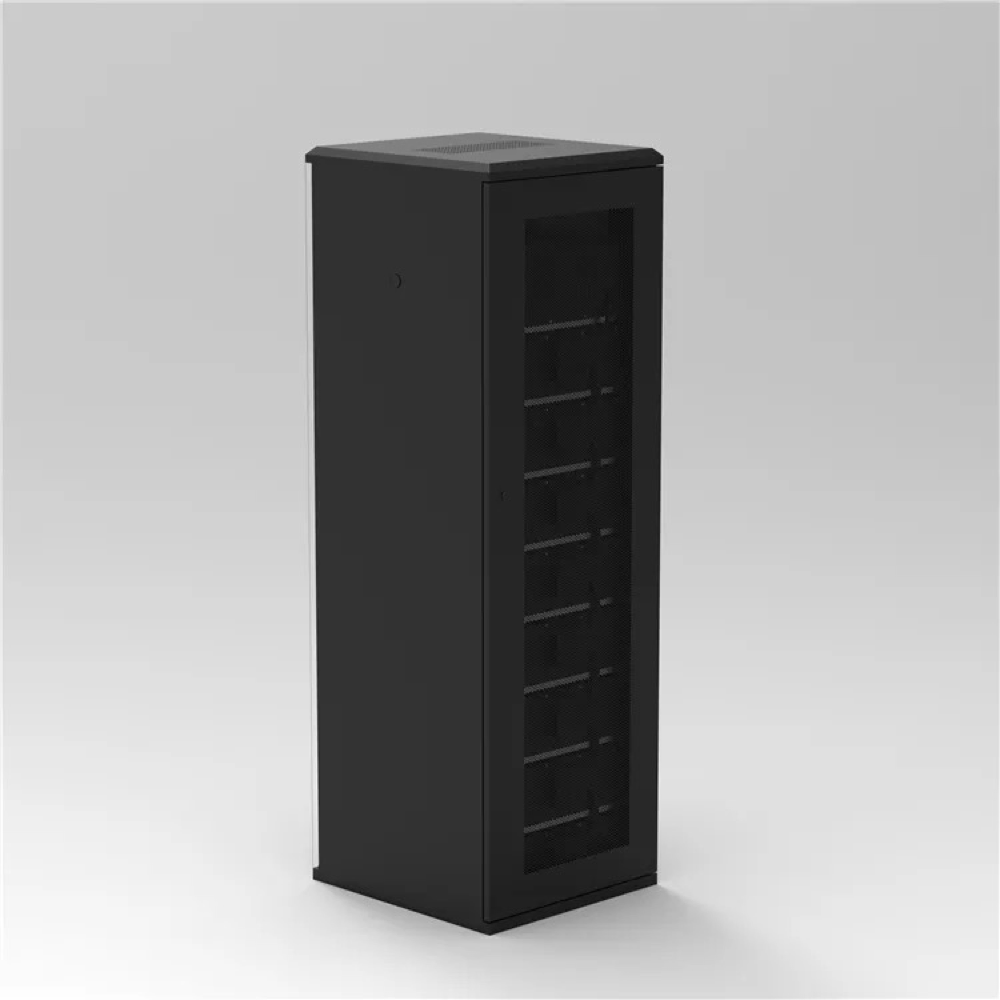

High Voltage Stacked Energy Storage Battery

Basic parameters:

Core material: Lithium iron phosphate

Series parallel mode (S series, P parallel): 16S1P

Nominal voltage: 102.4V-409.6V

Nominal capacity: 100Ah

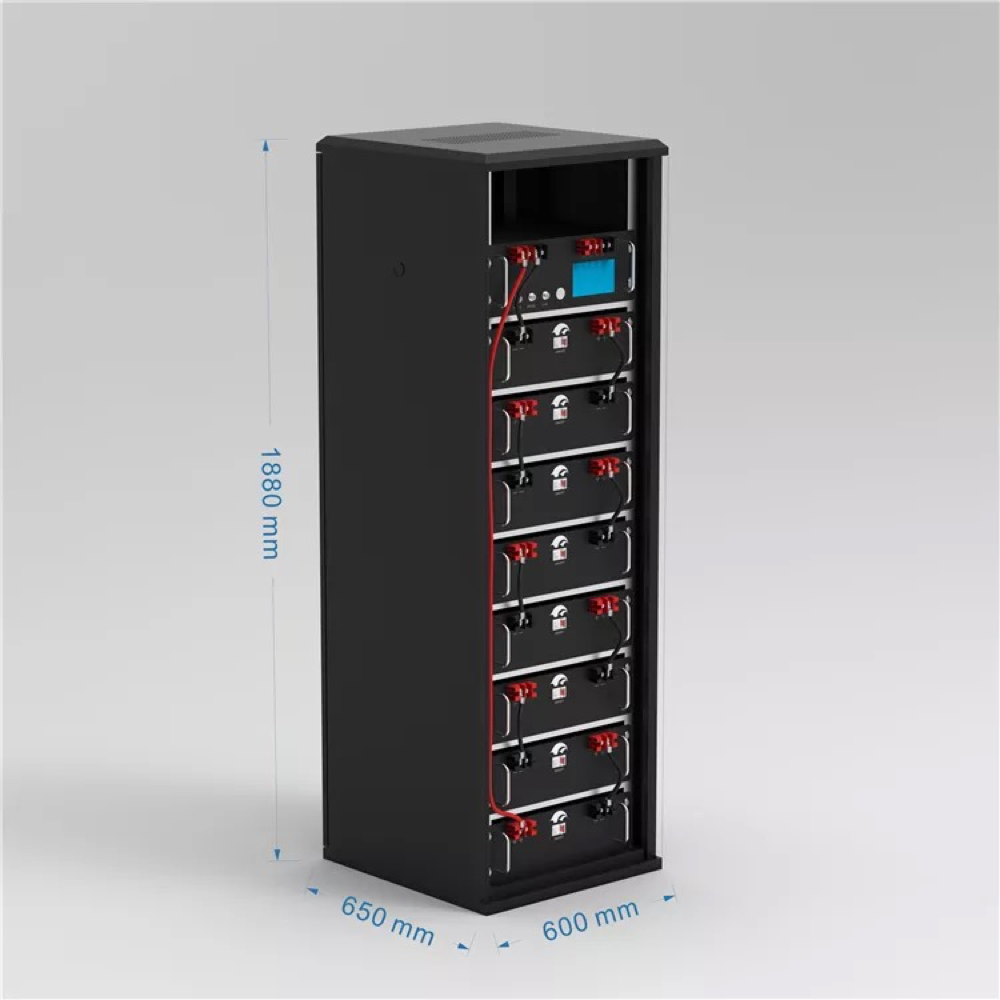

Size (mm): 1880 * 650 * 600

Weight: 400kg

Color: optional

Parallel support: supports parallel wiring terminals

Output port method: wiring terminal

Charging method: CC/CP/VP

Charging current: 0.2C (standard)

Maximum charging current: maximum 0.5C @ 25 ℃

Charging cutoff voltage: 58.4V/CELL

Discharge method: CC/CP/VP

Discharge current: 0.5C

Maximum discharge current: maximum 0.6C @ 25 ℃

Discharge cutoff voltage: 44.8V

Communication interface: RS485/RS232/CAN

Charging working temperature: Charging: 0~+50 ℃

Discharge working temperature: Discharge: -20~+55 ℃

Warranty period: 36 months

High Voltage Stacked Energy Storage Battery

Basic parameters:

Core material: Lithium iron phosphate

Series parallel mode (S series, P parallel): 16S1P

Nominal voltage: 102.4V-409.6V

Nominal capacity: 100Ah

Size (mm): 1880 * 650 * 600

Weight: 400kg

Color: optional

Parallel support: supports parallel wiring terminals

Output port method: wiring terminal

Charging method: CC/CP/VP

Charging current: 0.2C (standard)

Maximum charging current: maximum 0.5C @ 25 ℃

Charging cutoff voltage: 58.4V/CELL

Discharge method: CC/CP/VP

Discharge current: 0.5C

Maximum discharge current: maximum 0.6C @ 25 ℃

Discharge cutoff voltage: 44.8V

Communication interface: RS485/RS232/CAN

Charging working temperature: Charging: 0~+50 ℃

Discharge working temperature: Discharge: -20~+55 ℃

Warranty period: 36 months

Detailed introduction

51.2V Lithium iron phosphate high-pressure stacked series

Product features:

1. High energy density;

2. Excellent low-temperature performance;

3. Specific energy;

4. Good safety performance;

5. Long cycle life;

6. Fast charging and discharging, low discharge rate;

7. Parallel connection, up to 15;

8. Large capacity and long service life;

9. Can be wall mounted and stacked.

Applicable field:

Communication base station
In the data
Communication cabinet
Solar hybrid power system
Home energy storage system

Application scenario:

Product parameters:

Model 型号		102.4V 100AH	153.6V 100AH	204.8V 100AH	256V 100AH	307.2V 100AH
No 序号	Item 内容	Parameter	Parameter	Parameter	Parameter	Parameter
1	Rating Voltage 标称电压	102.4V	153.6V	204.8V	256V	307.2V
2	Capacity 标称容量	100Ah
3	minimum capacity 最小容量	≥100Ah
4	communication mode 通讯方式	RS232/RS485/CAN
5	Charge Voltage 充电电压	116.8V	175.2	233.6	292	350.4
6	Charge current 充电电流	≤100A
7	Impedance 内阻	≤80mΩ（Max）
8	Charging Mode 充电方式	CC/CV
9	Charging Method 充电方法	Standard Charging 0.2C
9	Charging Method 充电方法	Fast Charging0.5C
10	Charging Time 充电时间	Standard Charging About 6 Hours
10	Charging Time 充电时间	Fast Charging About 3 Hours
11	Overcharge Voltage 过充电保护电压	3.65V /Cell
12	Over Discharge Cut Off Voltage 过放电保护电压	2.8V /Cell
13	Rated discharge current 额定放电电流	Maximum discharge current：120A
14	Over Current 过流保护	120A
15	Short Circuit 输出短路保护	Recover after removing the short circuit load
16	Operating Consumption Current 工作消耗电流	50mA (Max)
17	Operating Temperature 工作温度	Charging 0~+60℃
18	Storage Temperature 贮存温度	-20℃-50℃ Recommend（25±5℃）
19	Cycle Life	6000 cycle
20	Dimensions 尺寸（mm）	6006001000mm	6006001000mm	6006001200mm	6006001600mm	6006002000mm
21	Weight 重量（KG）	≥ 130 kg	≥ 180 kg	≥ 230kg	≥ 300 kg	≥ 350 kg
22	Shipped product charge 出货产品带电量	50%-60% battery volume delivery
23	Package material 包装材质	Carton + wooden fumigation tray
