Detailed introduction

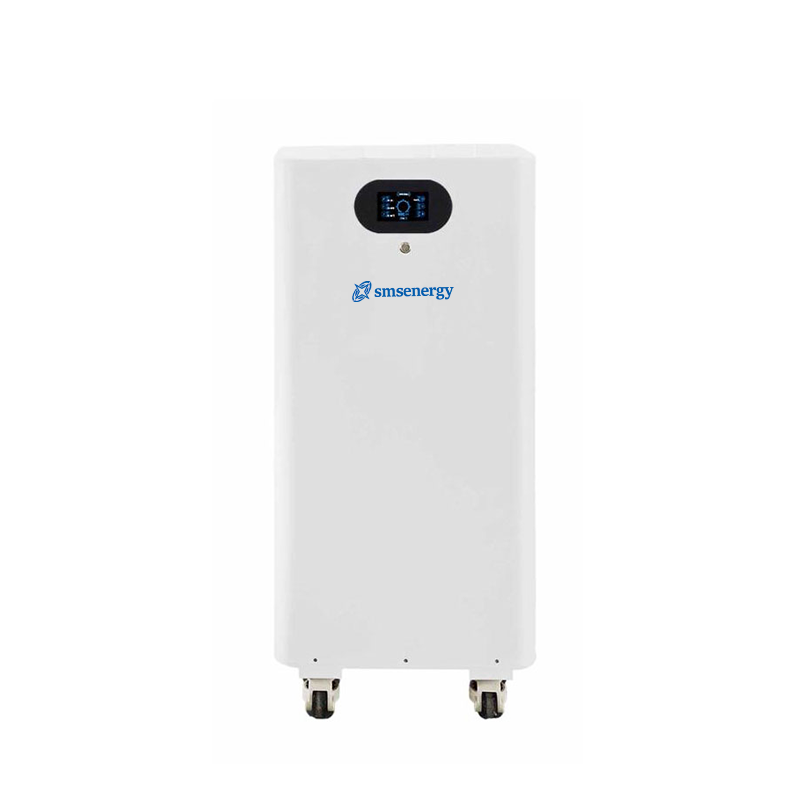

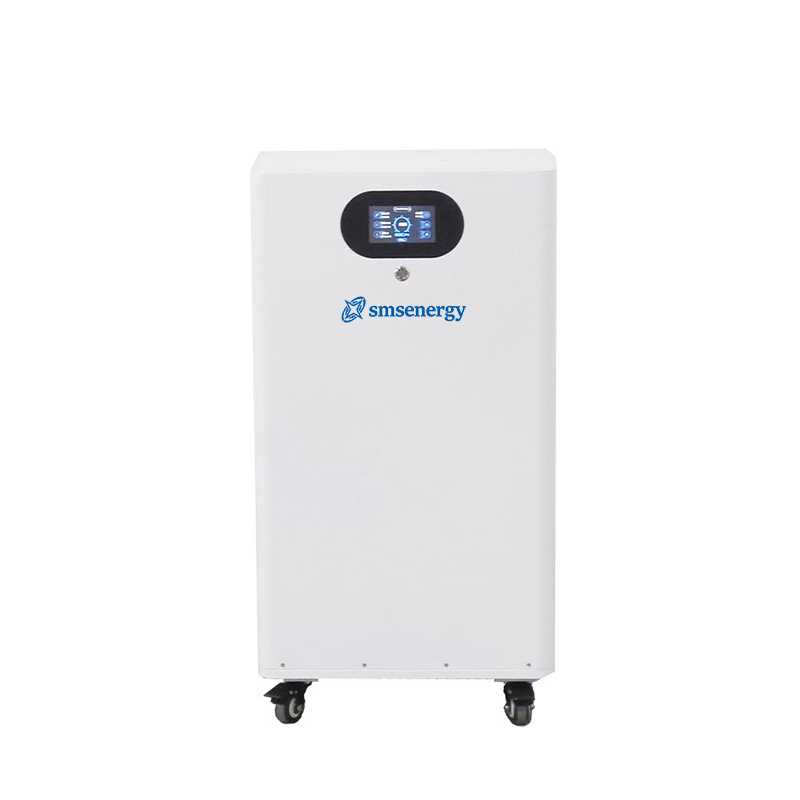

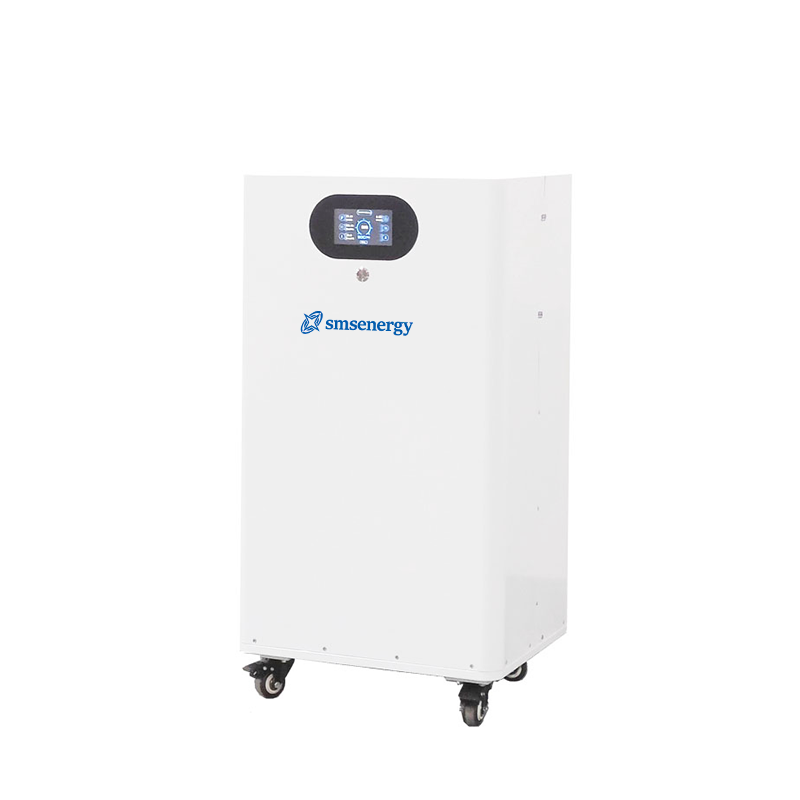

Standing Battery 48/51.2V 300Ah 400Ah series


Product features:

1、Capacity power supply cabinet;

2、No Active cooling system is required;

3、Operational reliability;

4、Can be maintained for more than 10 years in an environment of 25 ℃;

5、Optimize management;

6. Compliant with RoHs.


Applicable field:

  • Smart grid, microgrid system

  • Oil electric hybrid energy storage system

  • Mobile Container Storage System

  • Power grid frequency modulation energy storage system

  • Other energy storage systems

  • New energy communication base station, core computer room, IDC, UPS

  • Peak shifting energy storage system

  • New energy generation (solar, wind, photovoltaic/wind hybrid integration into energy storage systems)

  • Load tracking energy storage system


Application scenario:


SMS-24v100ah壁挂式电池         SMS-24v100ah壁挂式电池         SMS-24v100ah壁挂式电池


48/51.2V 300Ah 400Ah Standing Battery





























ItemSpecifications
Cell TypeLiFePO4LiFePO4
300Ah @0.2C Discharge400Ah @0.2C Discharge
51.2V51.2V
58.4V±1.0V, 0.2C5A58.4V±1.0V, 0.2C5A
40.0V±2.0V, 0.2C5A40.0V±2.0V, 0.2C5A
100A100A
200A200A
Instantaneous Max Discharge Current220A±5A /1S220A±5A /1S
220A±15A /100mS220A±15A /100mS
OCVP/ODVP/OCP/SCP/OTP etc.OCVP/ODVP/OCP/SCP/OTP etc.
RS485/CANRS485/CAN
Charging： 0℃~45℃Charging： 0℃~45℃
Discharging：-10℃~60℃Discharging：-10℃~60℃
Storage Temperature-5℃~35℃-5℃~35℃
Standard Environmental ConditionTemperature： 25±2℃Temperature： 25±2℃
Humidity：45-75%RHHumidity：45-75%RH
Atmospheric Pressure： 86-106 KPAAtmospheric Pressure： 86-106 KPA

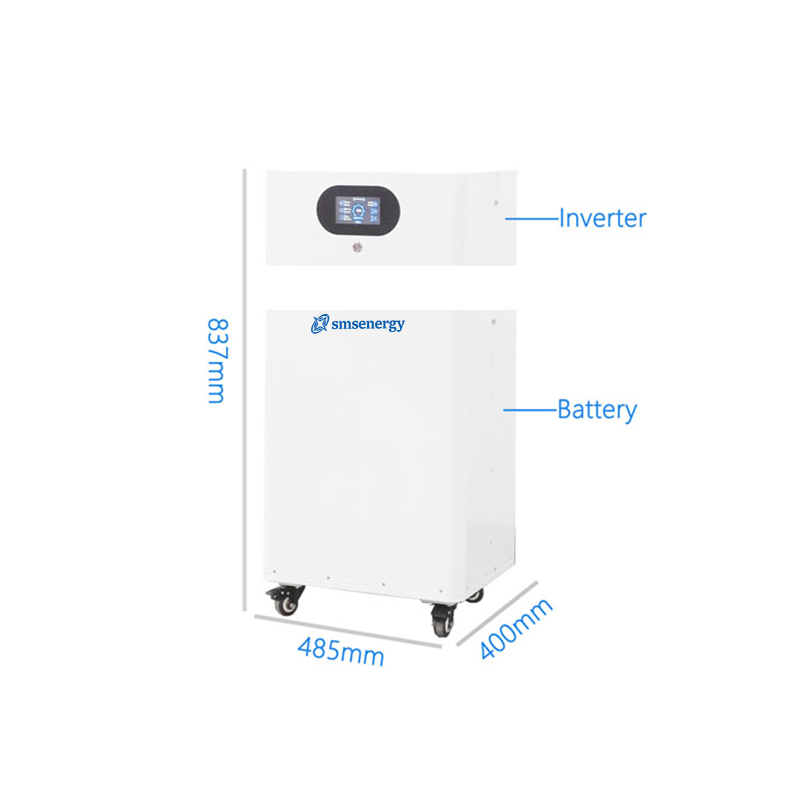

Size485mm*400mm*837mm (Max)485mm*400mm*837mm (Max)
Weight150kg187kg
Shell ColorWightWight
Shell MaterialMetalMetal
