Product features:
1、Capacity power supply cabinet;
2、No Active cooling system is required;
3、Operational reliability;
4、Can be maintained for more than 10 years in an environment of 25 ℃;
5、Optimize management;
6. Compliant with RoHs.
Applicable field:
Smart grid, microgrid system
Oil electric hybrid energy storage system
Mobile Container Storage System
Power grid frequency modulation energy storage system
Other energy storage systems
New energy communication base station, core computer room, IDC, UPS
Peak shifting energy storage system
New energy generation (solar, wind, photovoltaic/wind hybrid integration into energy storage systems)
Load tracking energy storage system

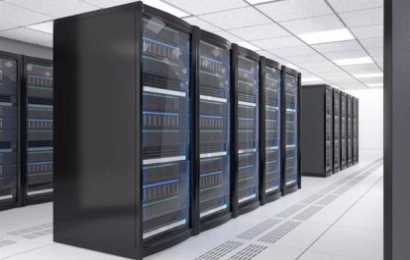

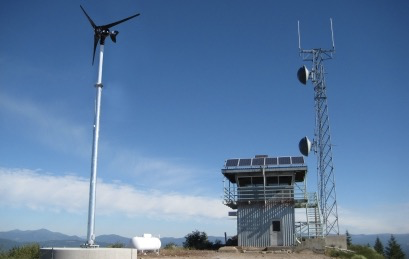

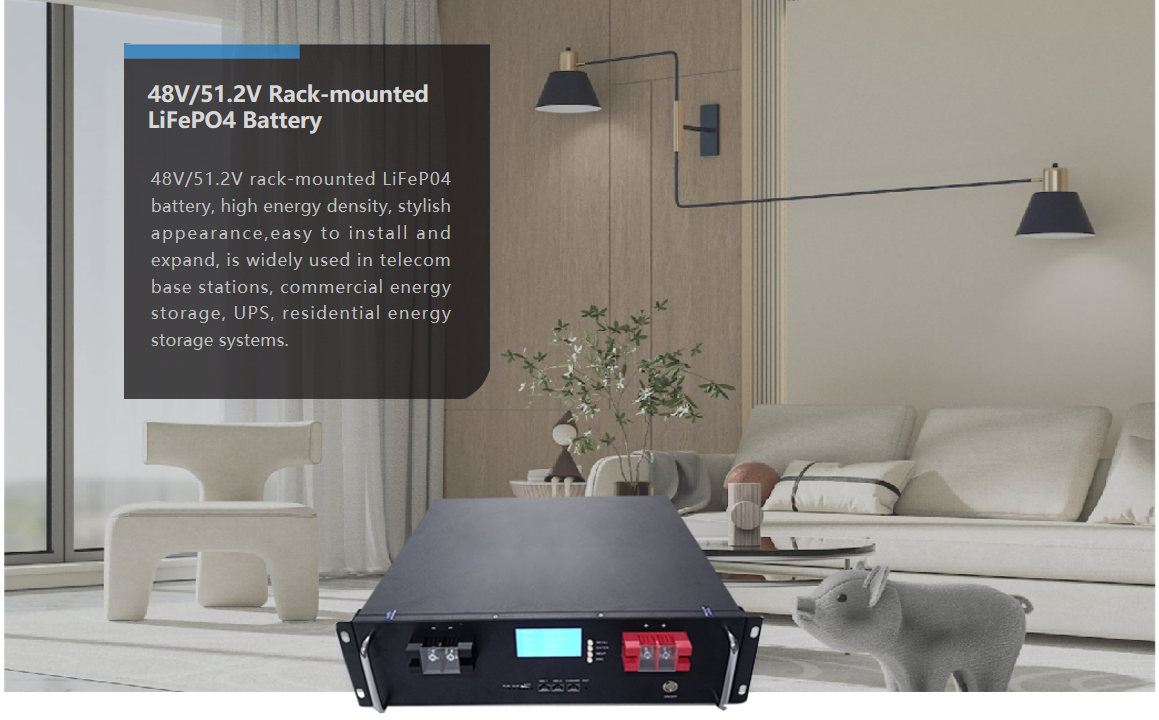

Application scenario:

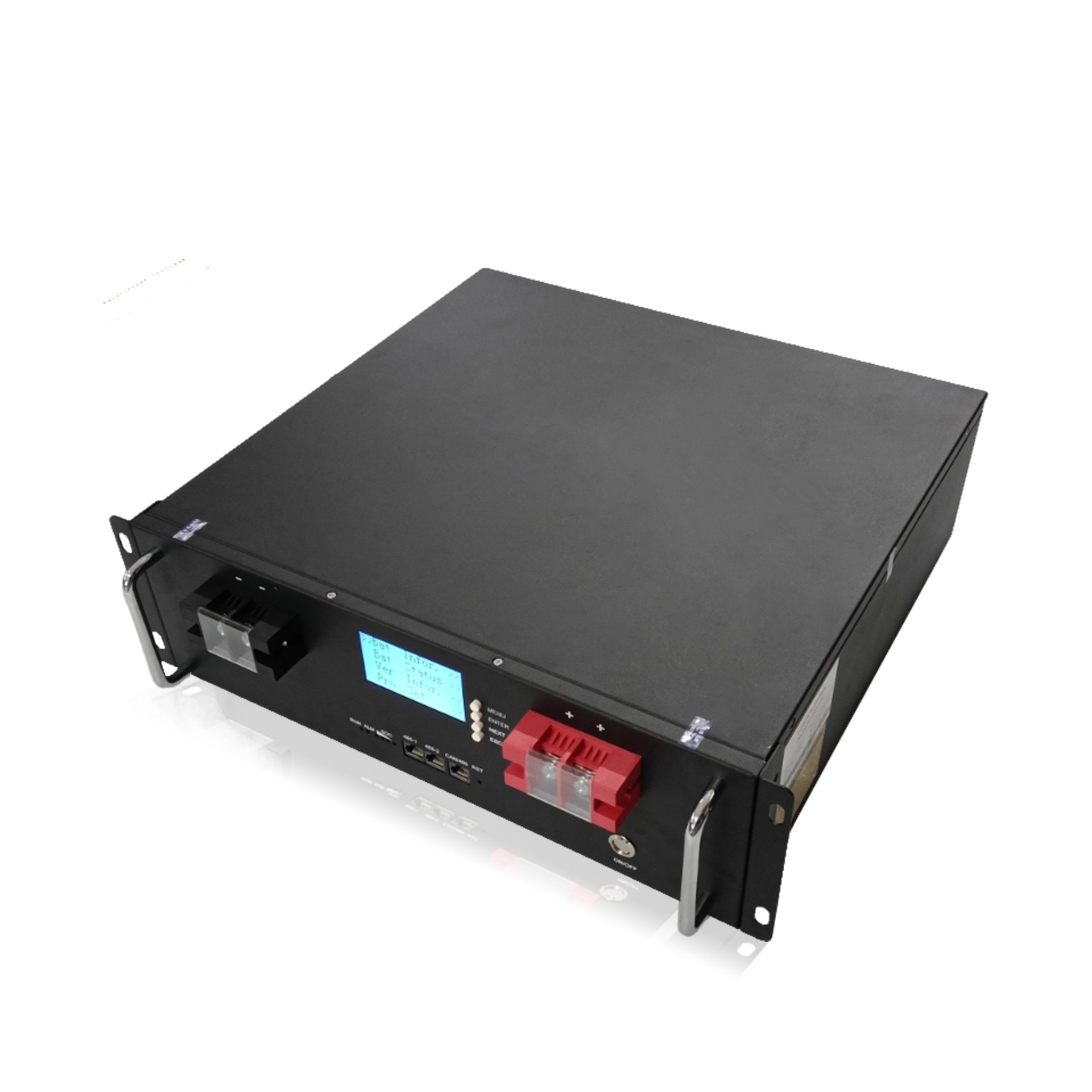

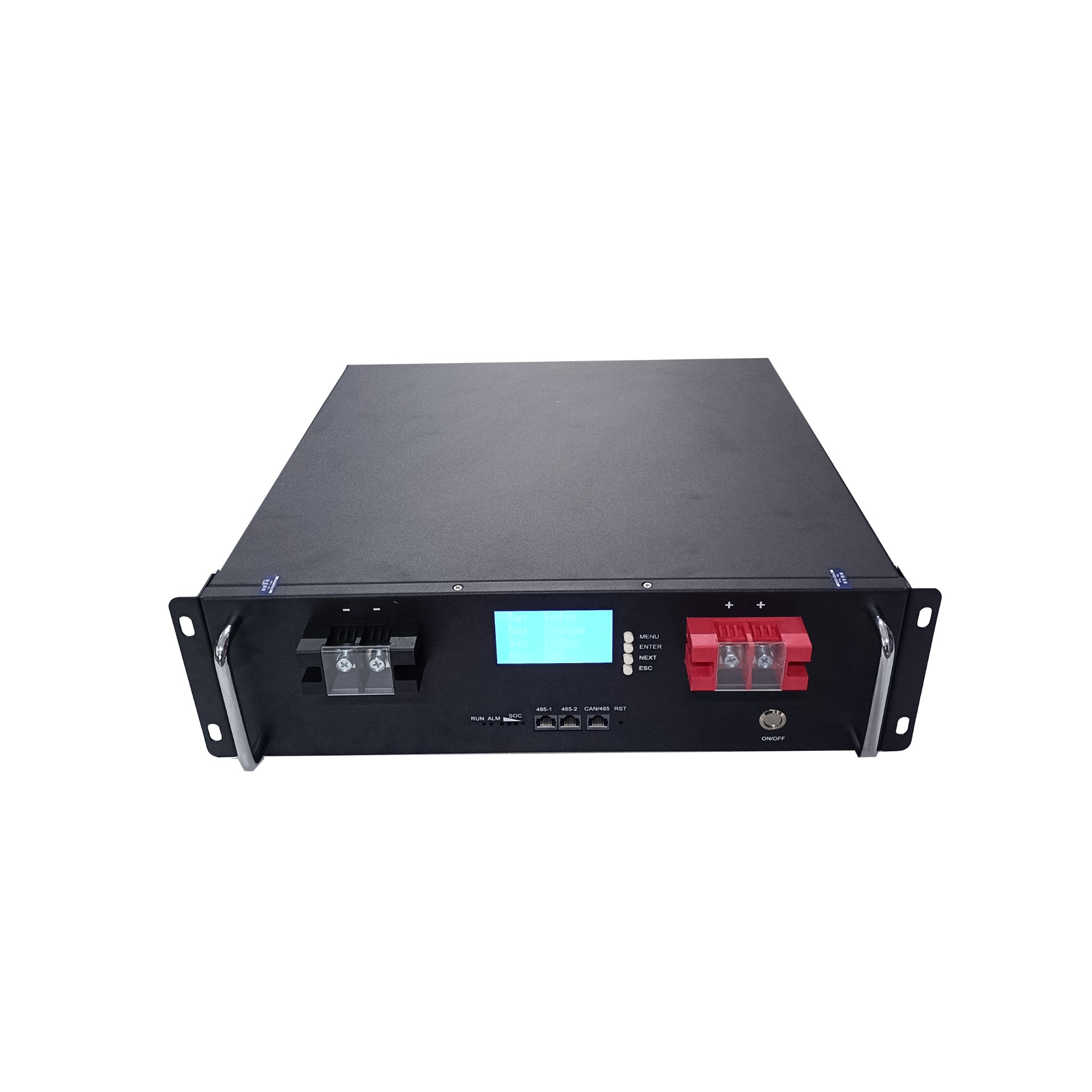

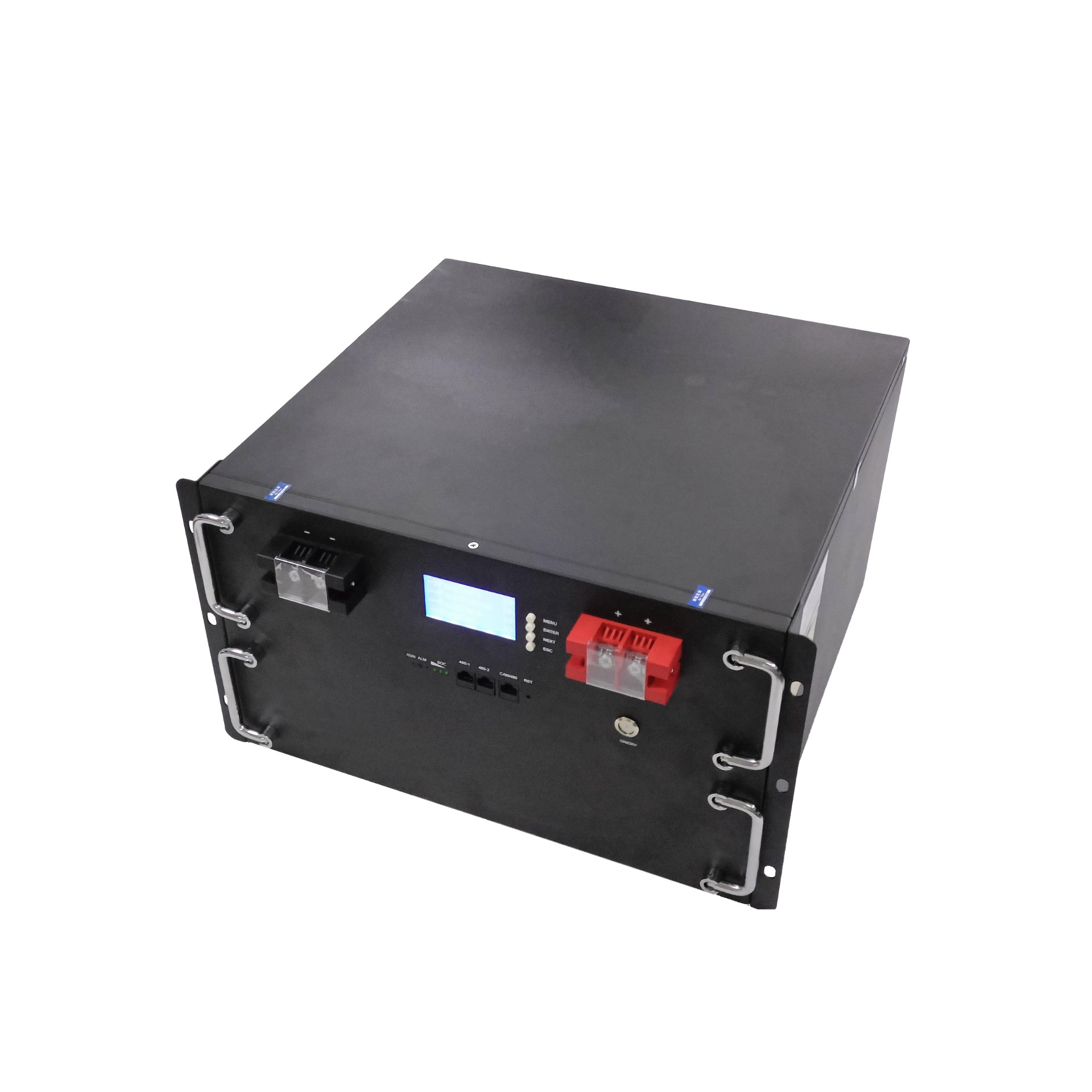

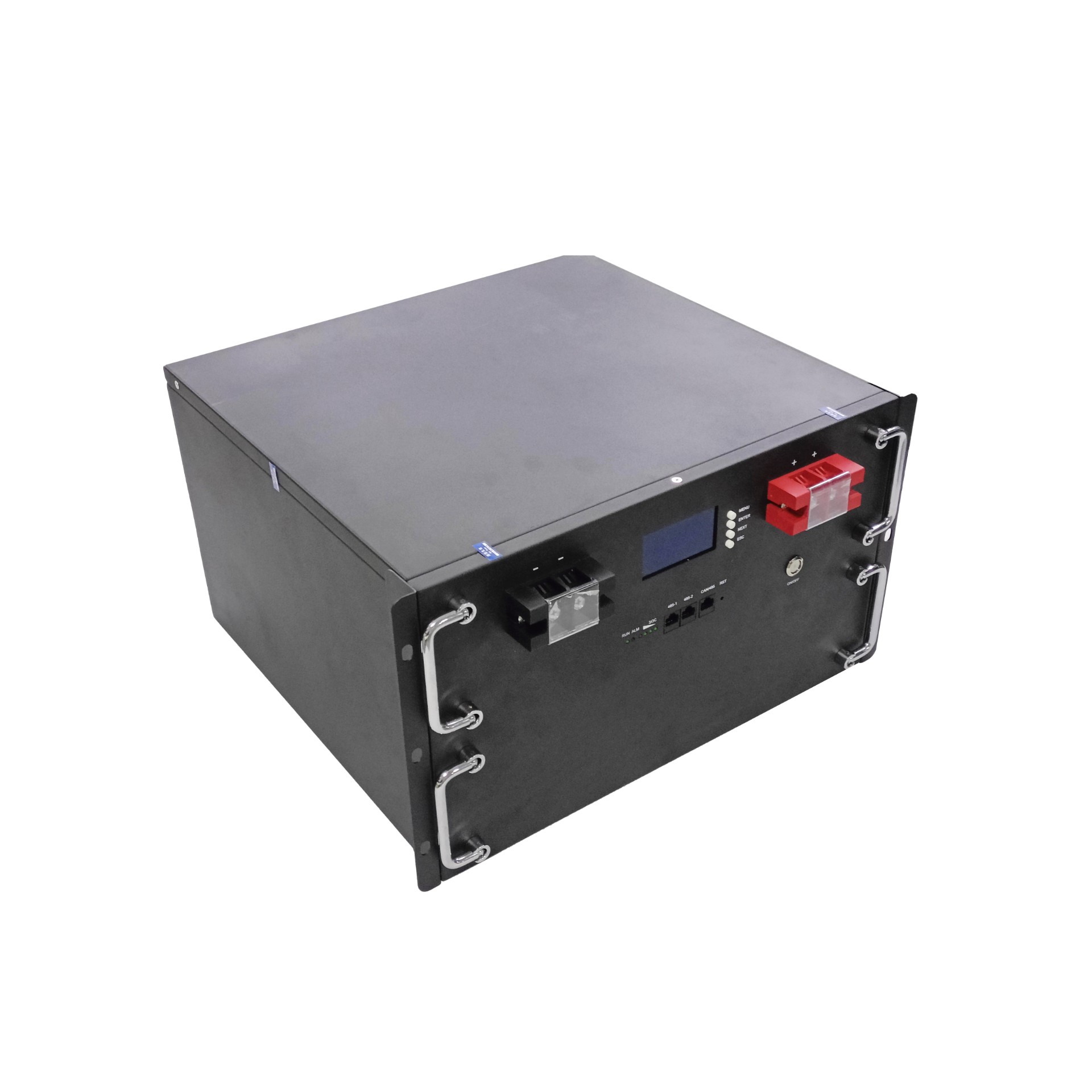

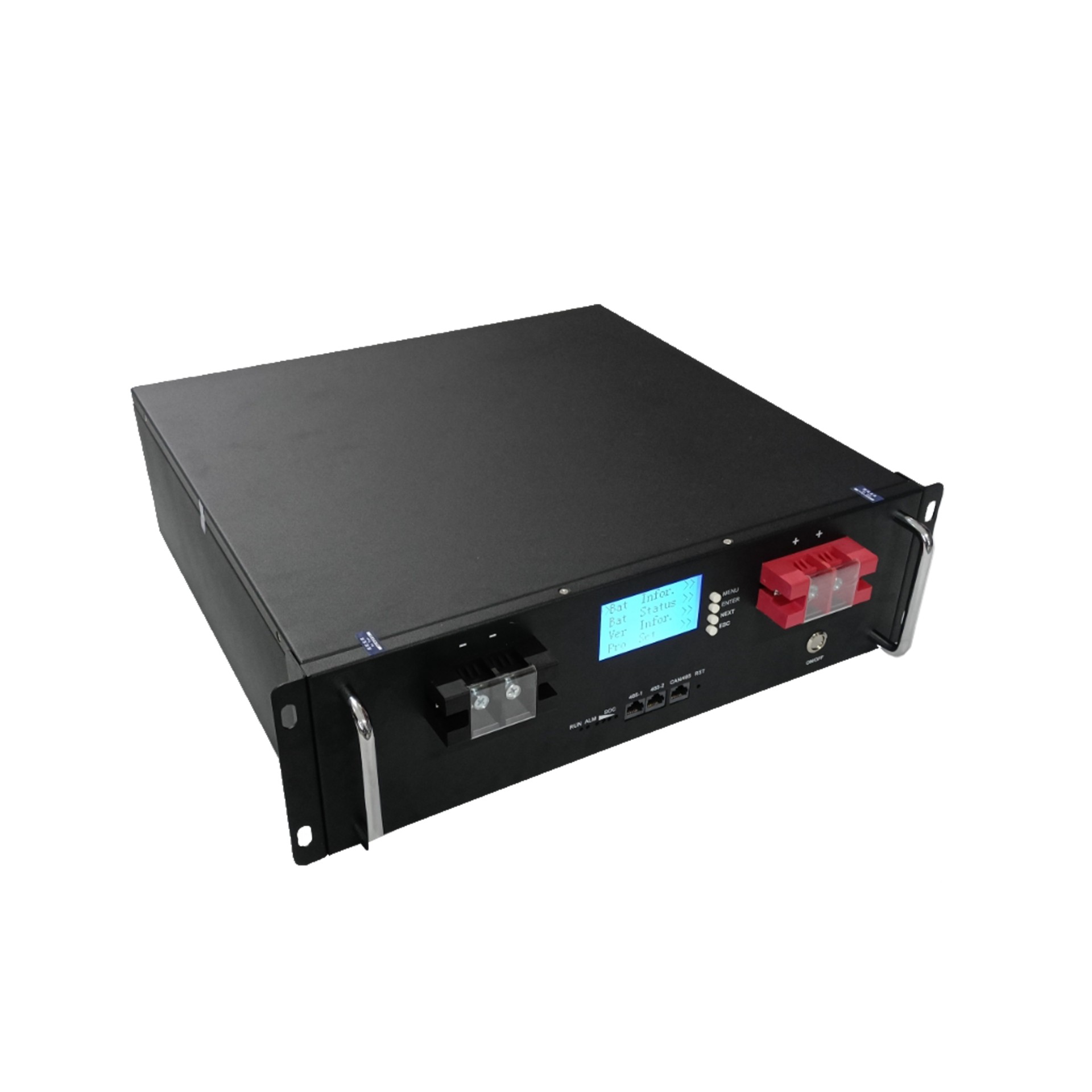

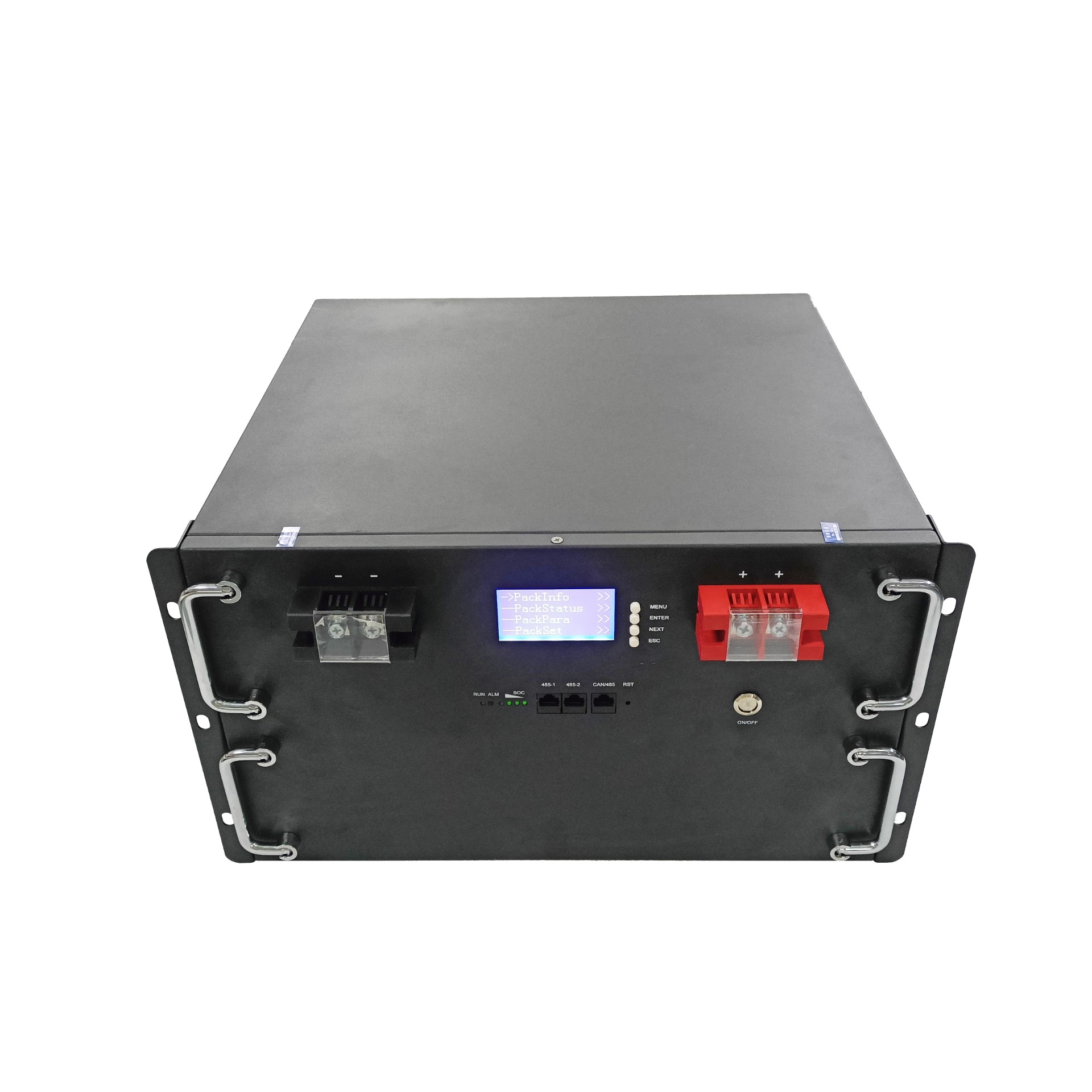

Product parameters:
| Model No. | SMS-51100R | SMS-51200R | SMS-51300R |
| Cell Type | LiFePO4 | LiFePO4 | LiFePO4 |
| 100Ah | 200Ah | 300Ah |
| 51.2V | 51.2V | 51.2V |
| 58V±1.0V,0.2C5A | 58V±1.0V,0.2C5A | 58V±1.0V,0.2C5A |
| 40V±2.0V,0.2C5A | 40V±2.0V,0.2C5A | 40V±2.0V,0.2C5A |
| 50A | 100A | 150A |
| 100A | 200A(customization) | 200A |
| Over Current Protection | 150A±15A/100mS | 150A±15A/100mS | 150A±15A/100mS |
| OCVP/ODVP/OCP/SCP | OCVP/ODVP/OCP/SCP | OVP/UVP/OCP/OTP/ |
| RS485/CAN | RS485/CAN | RS485/CAN |
| Charging：0℃~45℃ | Charging：0℃~45℃ | Charge: 0℃~45℃ |
| Discharging：-10℃~60℃ | Discharging：-10℃~60℃ | Discharge: -10℃~60℃ |
| Charge Connector | 2P-Terminalblack2P | 2P-Terminalblack2P | 2P-Terminalblack2P |
| 2P-TerminalRED2P | 2P-TerminalRED2P | 2P-TerminalRED2P |
| Switch Connector | Self-lockingswitch | Switch | Switch |
| 442mm*420mm*133mm | 442mm*680mm*133mm | 482mm*770mm*285mm |
| 39.5kg | 79kg | 137kg |
