Detailed introduction

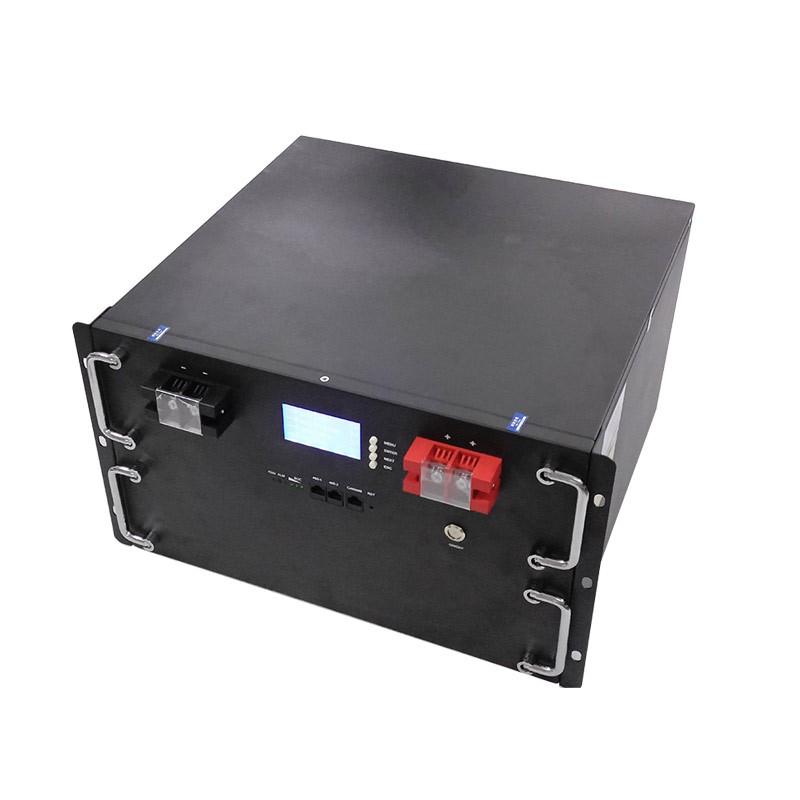

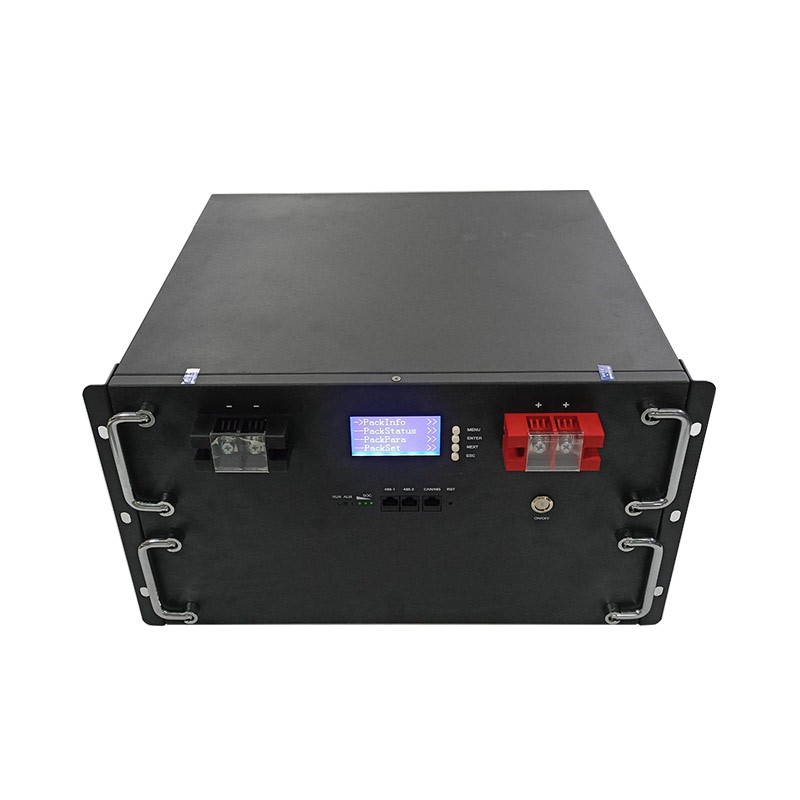

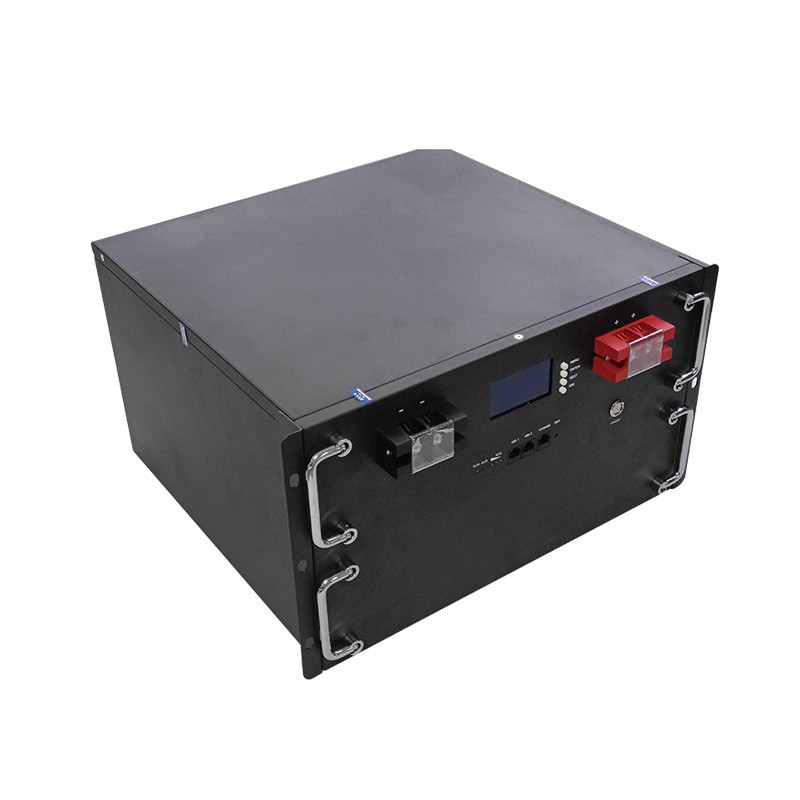

51.2V Lithium Iron Phosphate bracket series


Product features:

1、Capacity power supply cabinet;

2、No Active cooling system is required;

3、Operational reliability;

4、Can be maintained for more than 10 years in an environment of 25 ℃;

5、Optimize management;

6. Compliant with RoHs.


Applicable field:

  • Smart grid, microgrid system

  • Oil electric hybrid energy storage system

  • Mobile Container Storage System

  • Power grid frequency modulation energy storage system

  • Other energy storage systems

  • New energy communication base station, core computer room, IDC, UPS

  • Peak shifting energy storage system

  • New energy generation (solar, wind, photovoltaic/wind hybrid integration into energy storage systems)

  • Load tracking energy storage system


Application scenario:


SMS-24v100ah机架式电池         SMS-24v100ah机架式电池         SMS-24v100ah机架式电池


Product parameters:



ModelSMS-51100SMS-51200
Electrical characteristicsRated voltage (Vdc)51.251.2
Nameplate capacity (AH)100200
Energy Storage (KWH)5.1210.24
cycle life≥6,000 cycles to 85% DOD≥6,000 cycles to 85% DOD
Months of self discharge≤2%≤2%
Charging efficiencyFrom 100% to 0.2CFrom 100% to 0.2C
Discharge efficiencyFrom 96 to 99% to 1CFrom 96 to 99% to 1C
Standard chargingCharging voltage58.4Vdc58.4Vdc
Float charging voltage58Vdc58Vdc
Charging mode0.2C to 29.2V, then 29.2V charging current to 0.02C (CC/CV)
Charging current (A)2040
Maximum charging current (A)100120
Charging cutoff voltage (VDC)58.458.4
Standard dischargeContinuous current (A)100120
Discharge cutoff voltage (VDC)44.844.8
environmentCharging temperature0 ℃ to 45 ℃ (32F to 113F) @ 60 ± 25% relative humidity
Exhaust temperature-20 ℃ to 60 ℃ (-4F to 140F) @ 60 ± 25% relative humidity
Storage temperature0 ℃ to 40 ℃ (32F to 104F) @ 60 ± 25% relative humidity
mechanicalIntellectual PropertyIP60IP60
Material systemLithium iron phosphateLithium iron phosphate
Case materialsmetalmetal
Case typeRack mountedRack mounted
Packaging size L * W * H (mm)490*440*170490*442*290
Packaging box size L * W * H (mm)585*515*345600*600*325
Net weight (kg)6879
Gross weight (kg)7283
TermialM8M8
Protocol (optional)CANBus/RS485/RS232CANBus/RS485/RS232
SOC (optional)LED/LCDLED/LCD
