Detailed introduction

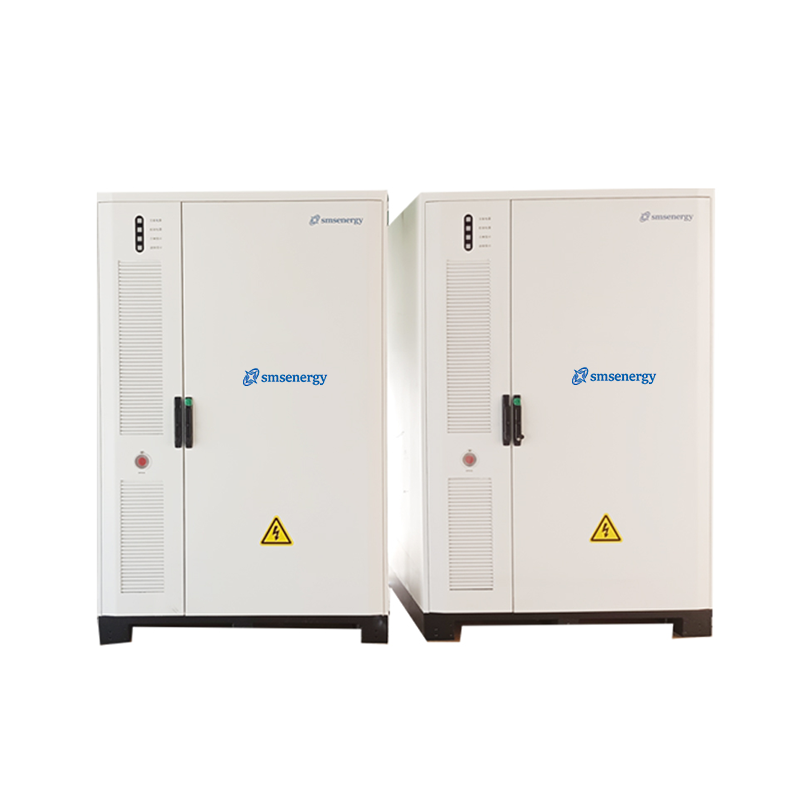

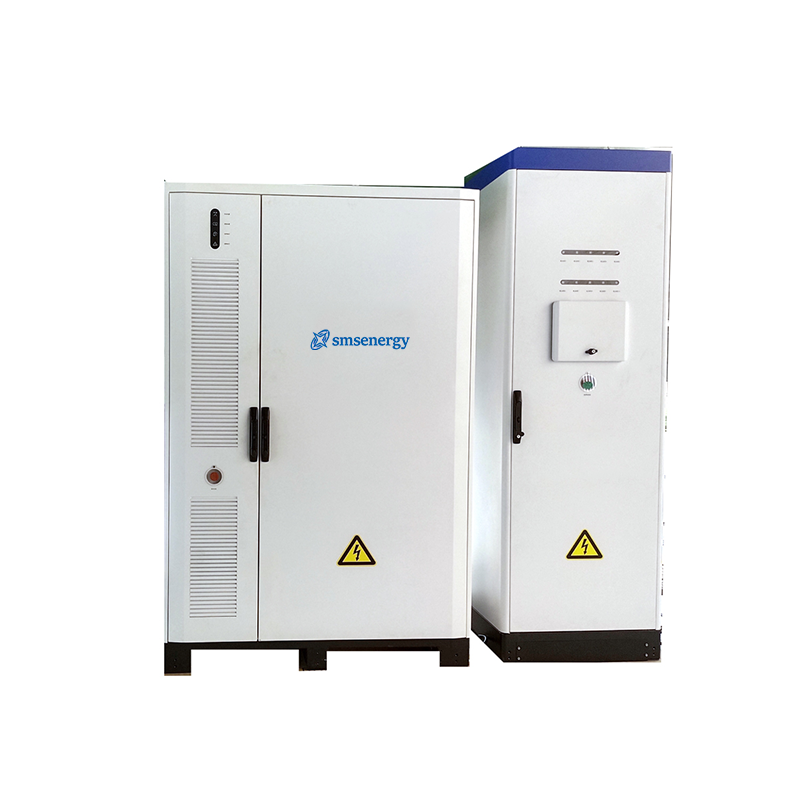

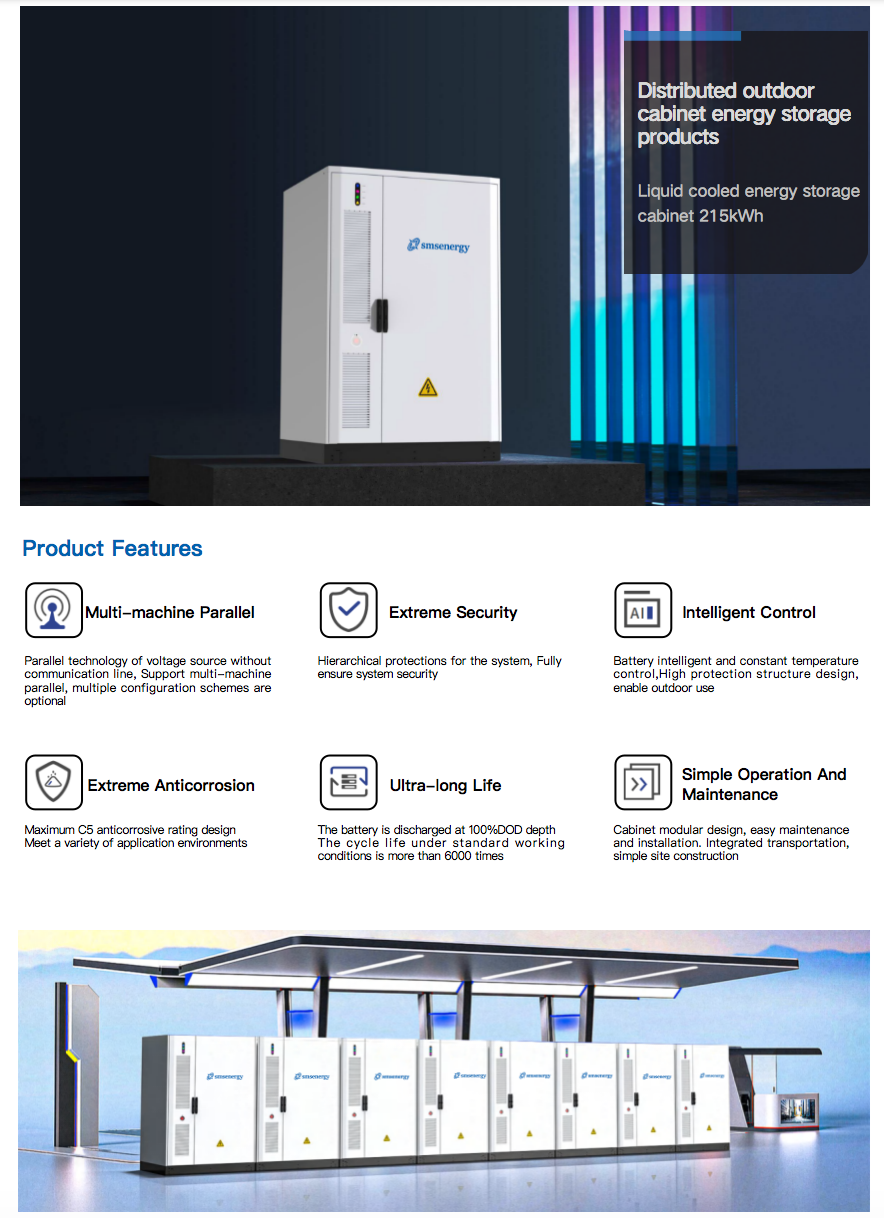

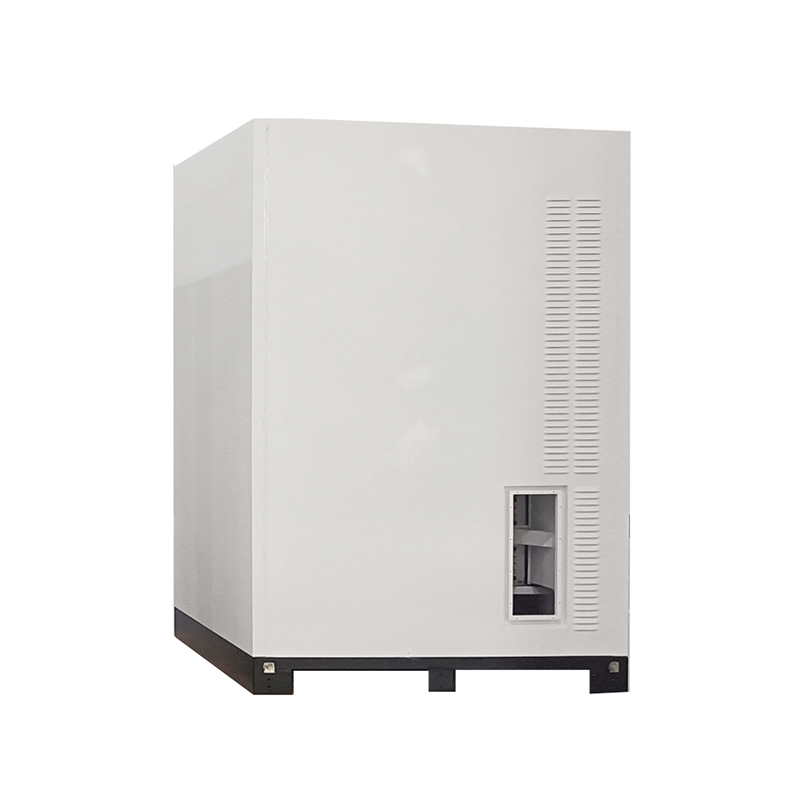

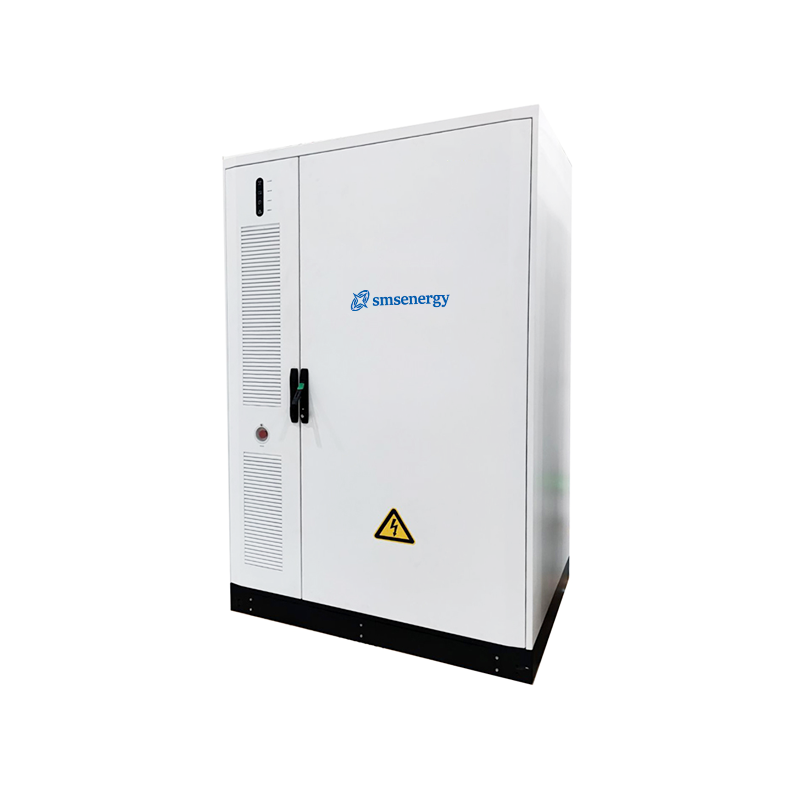

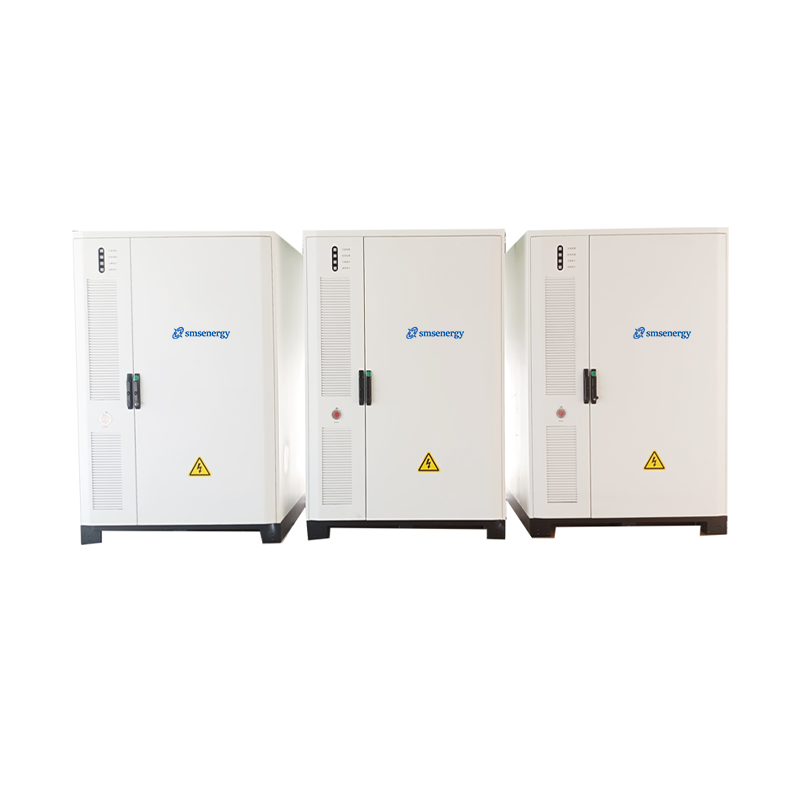

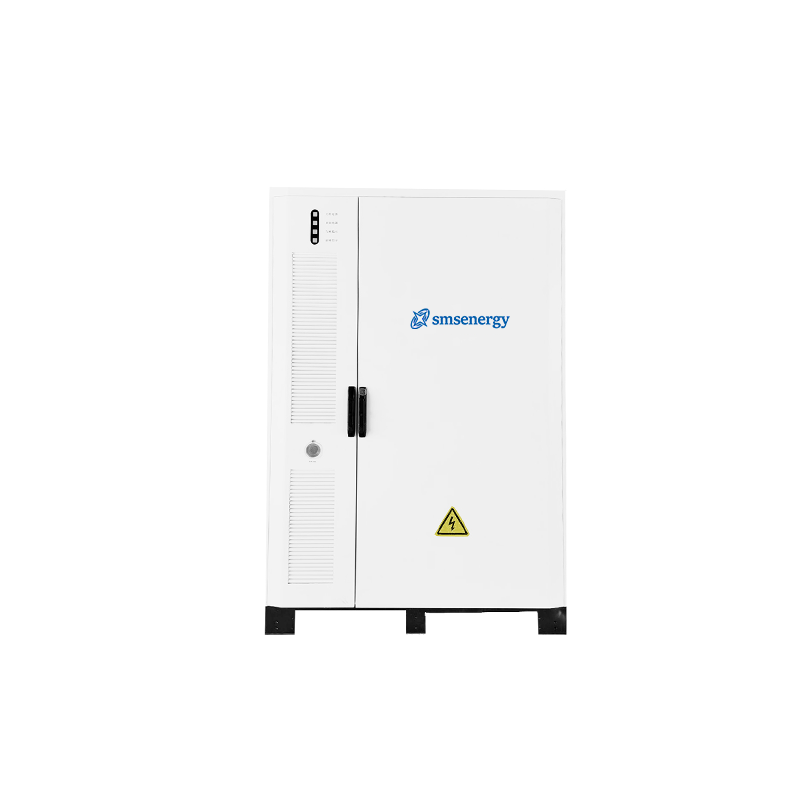

Distributed Outdoor Cabinet Energy Storage

AC Parameter
Grid Voltage400V,3W+PE
Rated AC Current152A
Power Factor Adjustable Range-1~+1
Rated AC Power100kW
Rated Grid Frequency50/60Hz
THDi (Rated Power)<3%
Discharge Current100A
DC Parameter
Protection LevelIP55
Isolation ModeNon-isolation
Weight2800kg
Battery Energy215kWh
DC Voltage Range648V~876V
DC Max. Current166A
System Parameter
Protection LevelIP55
Isolation ModeNon-isolation
Weight2800kg
Battery Temperature Controlled ModeLiquid Cooled
Working Temperature-20℃ ~ 70℃
Allowed Humidity Range5%~95%RH
Fire Fighting SystemAerosol/Heptafluoropropane/Perfluorohexadone
Corripsion Proof LevelC4
Communication PortRS485、CAN、LAN
Dimensions (W*H*D)1430*2150*1350mm
System Lifespan6000 times@25℃,0.5CP
Altitude≤3000m
 (>3000mCustomizable)


Solar Storage Inverter

Rated Power: 8~12KW

MPPT Voltage: 230/400V

Size (mm): 700*440*260mm


Off-Grid Energy Storage System All-in-one

Nominal voltage: 12.8V

Nominal capacity: 100Ah

Size (mm): 460*310*220


48/51.2V 300Ah 400Ah Standing Battery

Nominal voltage: 51.2V

Nominal capacity: 300Ah

Size (mm): 485*400*837
