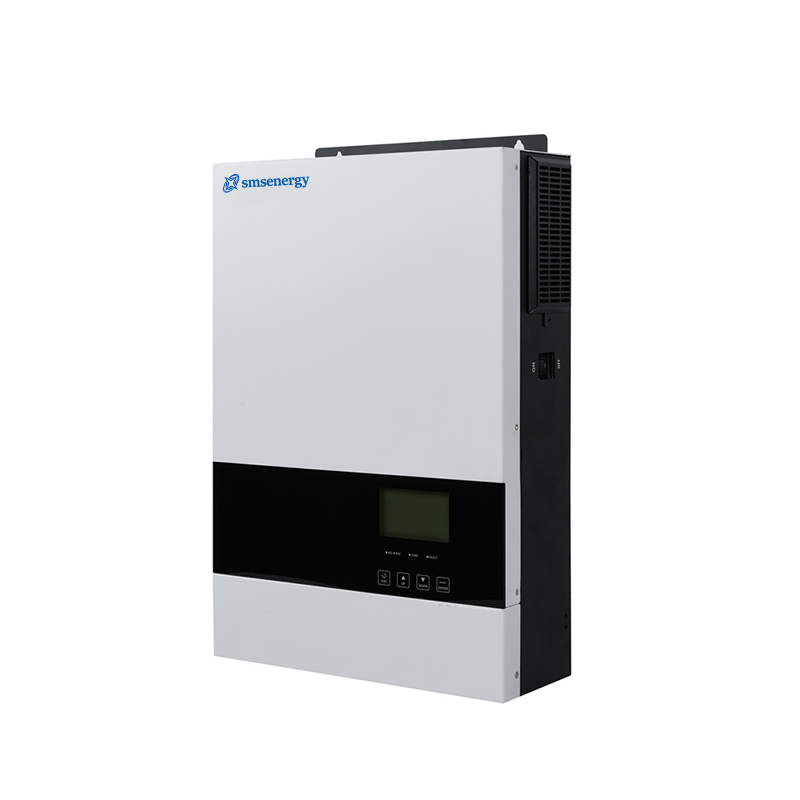

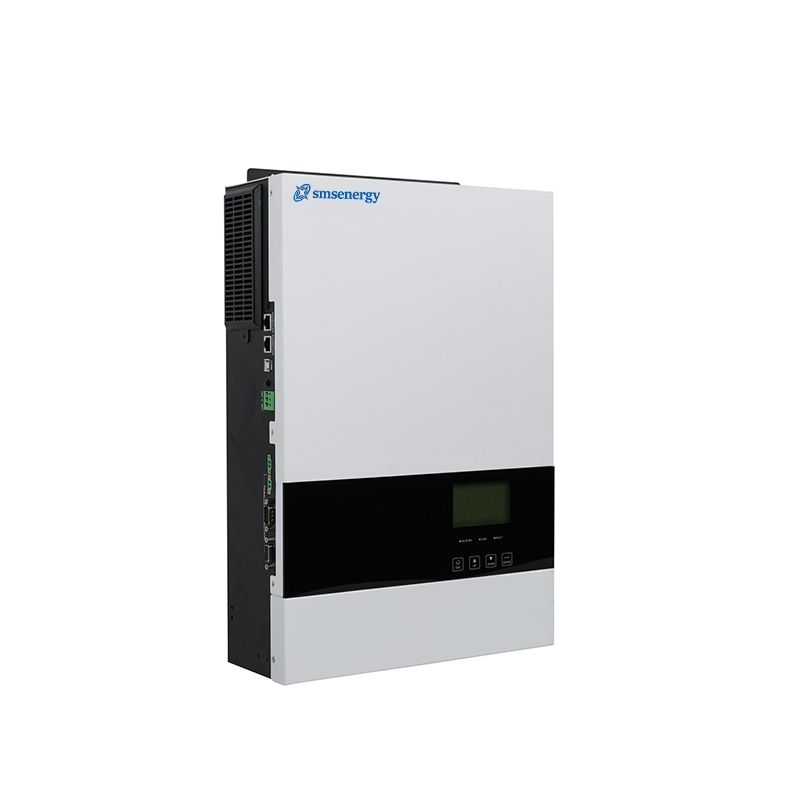

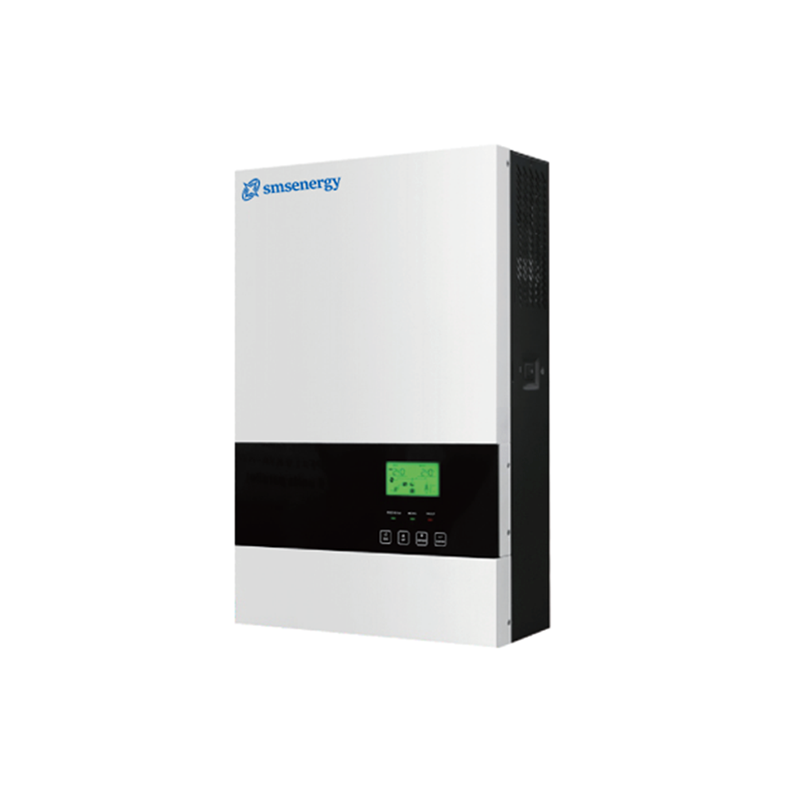

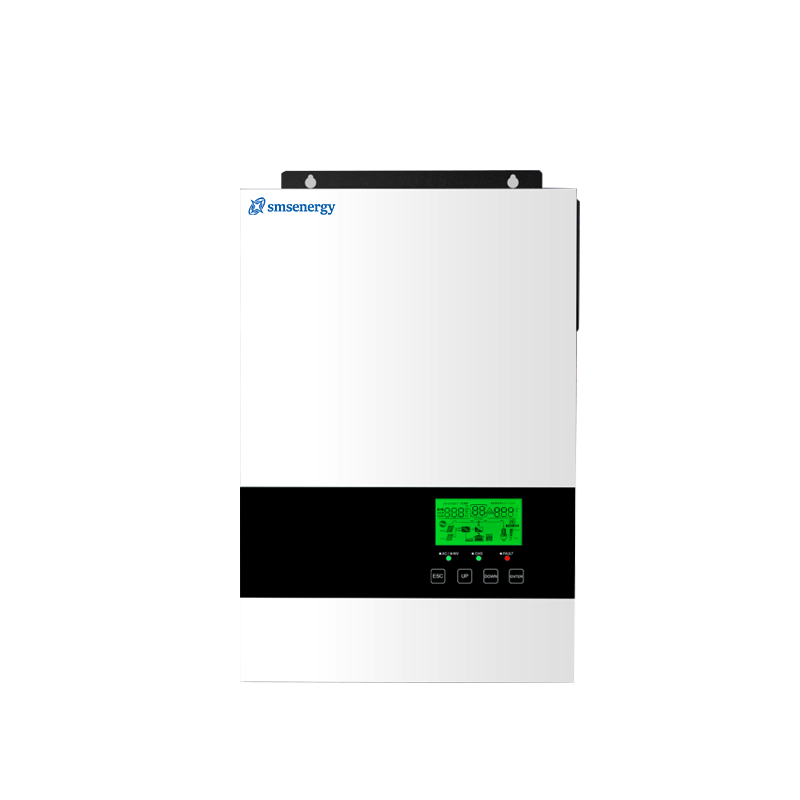

PVM Off-Grid Inverter

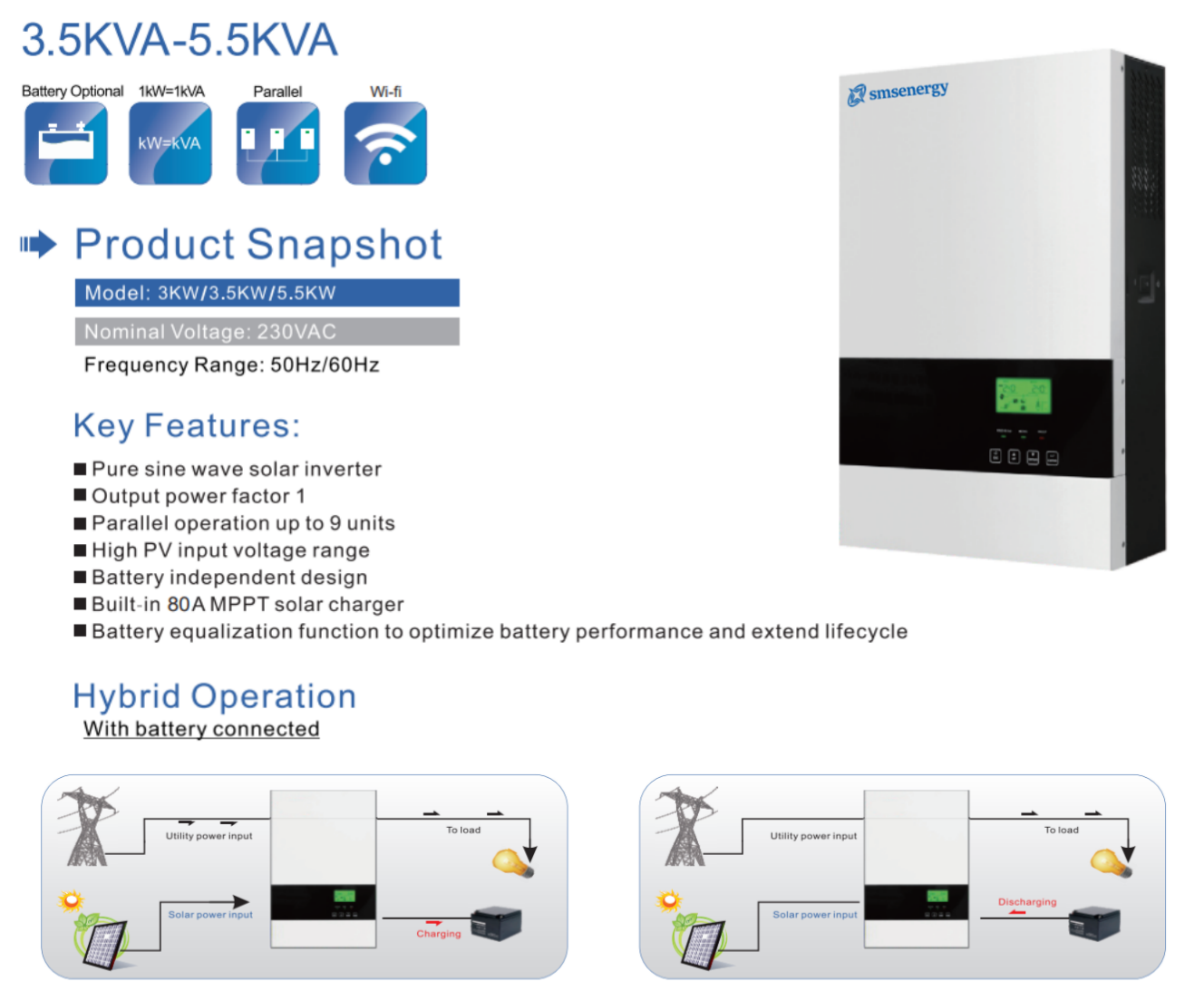

Key Features:

Pure sine wave solar inverter
Output power factor 1
Parallel operation up to 9 units
High PV input voltage range
Battery independent design
Built-in 80A MPPT solar charger
Battery equalization function to optimize battery performance and extend lifecycle

PVM Off-Grid Inverter

Key Features:

Pure sine wave solar inverter
Output power factor 1
Parallel operation up to 9 units
High PV input voltage range
Battery independent design
Built-in 80A MPPT solar charger
Battery equalization function to optimize battery performance and extend lifecycle

Detailed introduction

PVM Off-Grid Inverter

Product parameters:

MODEL	PVM Plus 3000-24	PVM Plus 3500-24	PVM Plus 5500-48
Rated Power	3000VA/3000W	3500VA/3500W	5500VA/5500W
Voltage	230 VAC
Selectable Voltage Range	170-280 VAC (For Personal Computers);120-280 VAC (For Home Appliances)
Frequency Range	50 Hz/60 Hz(Auto sensing)
AC Voltage Regulation(Batt. Mode)	230VAC±5%
Surge Power	6000VA	7000VA	11000VA
Efficiency (Peak)	up to 93.5%
Transfer Time	10 ms(For Personal Computers):20 ms (For Home Appliances)
Waveform	Pure sine wave
Battery Voltage	24 VDC		48VDC
Floating Charge Voltage	27 VDC		54 VDC
Overcharge Protection	33 VDC		63 VDC
Maximum PV Array Open Circuit Voltage	450 VDC
Maximum PV Array Power	5500 W
MPPT Range @ Operating Voltage	120~450 VDC
Maximum Solar Charge Current	100 A
Maximum AC Charge Current	80 A
Maximum Charge Current	100 A
Dimension, D x W x H (mm)	550420225
Net Weight (kgs)	11.3	11.5	12.1
Communication Interface	USB/RS232
Humidity	5% to 95% Relative Humidity (Non-condensing)
Operating Temperature	-10°C to 50°C
Storage Temperature	-15°℃ to 60°C
