Detailed introduction

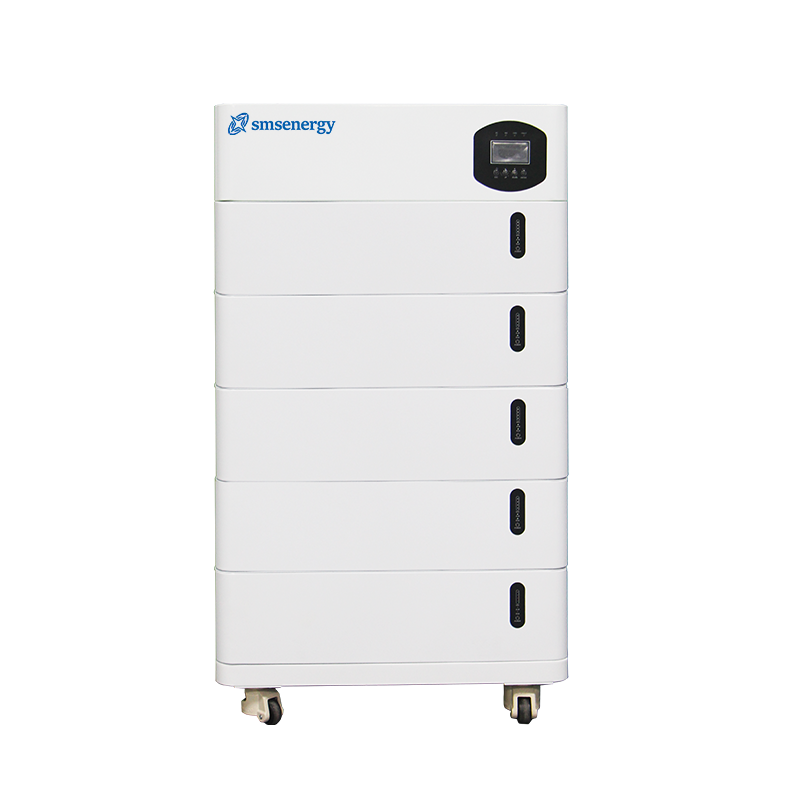

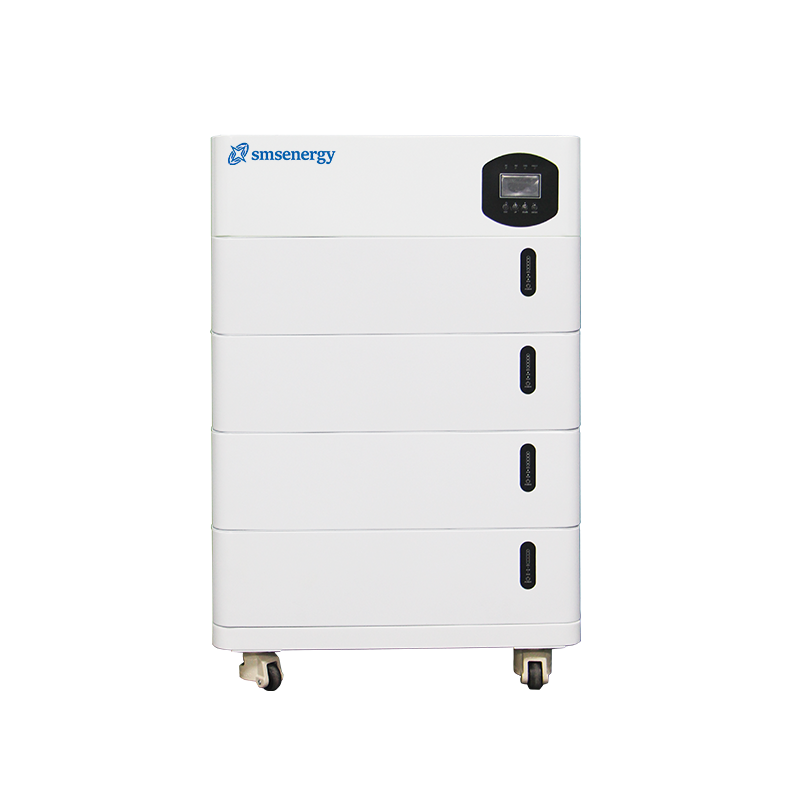

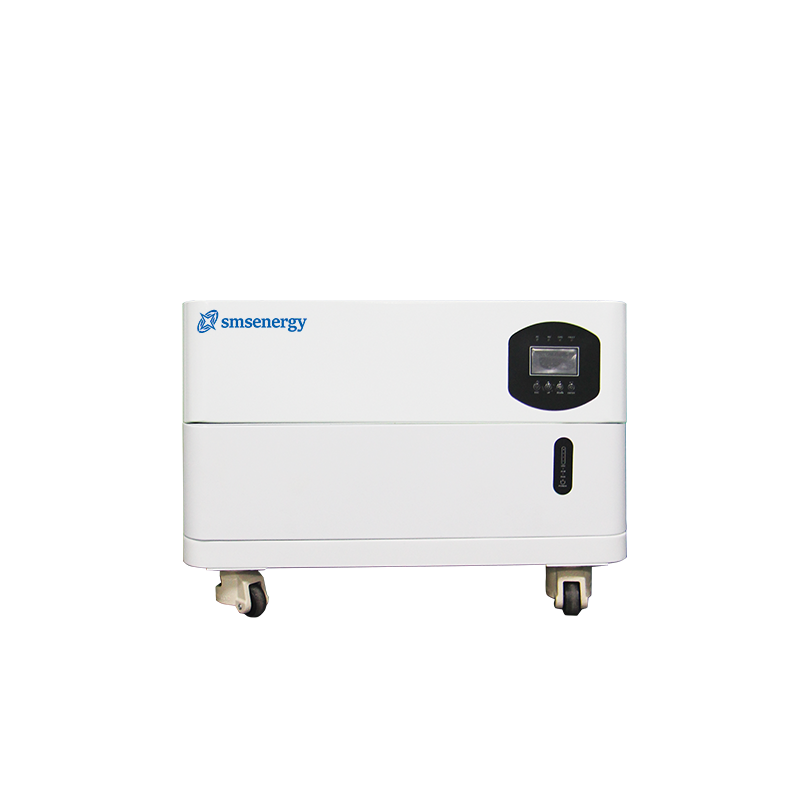

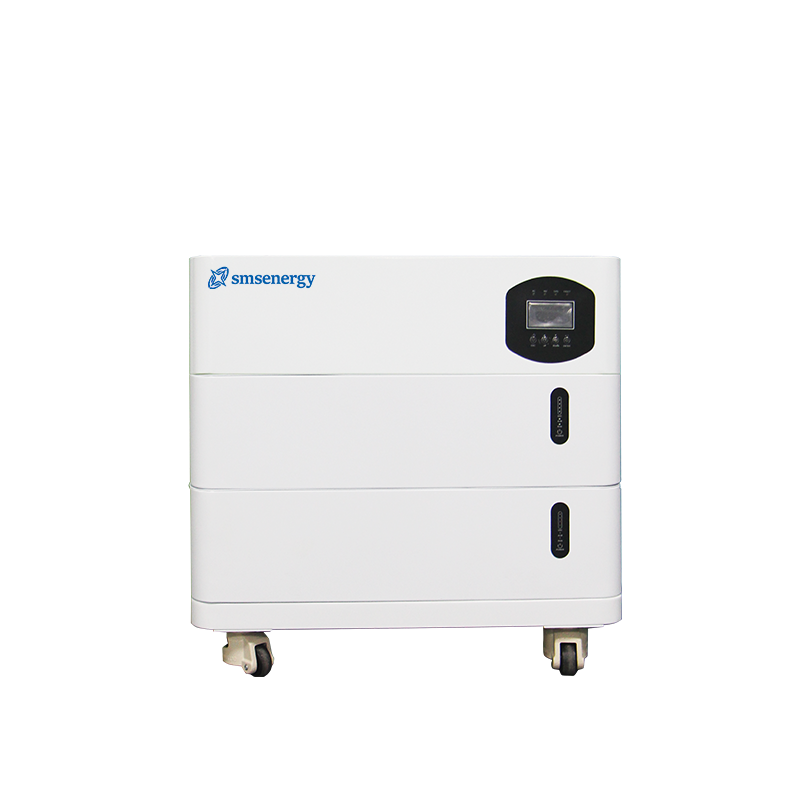

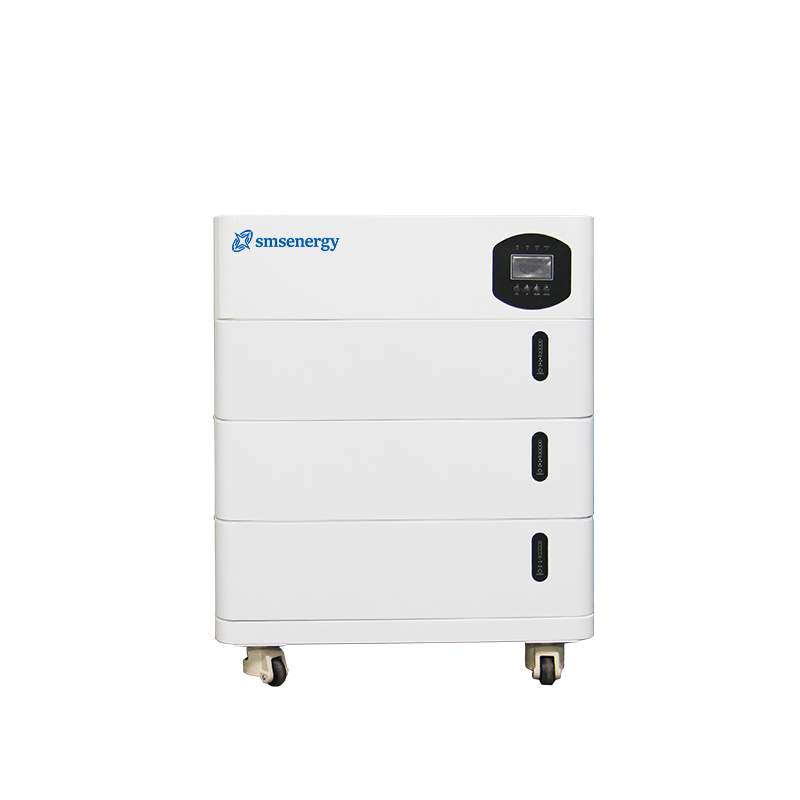

Stackable Battery All-in-one System Series


Product features:

  1. Capacity power supply cabinet;

  2. No Active cooling system is required;

  3. Operational reliability;

  4. Can be maintained for more than 10 years in an environment of 25 ℃;

  5. Optimize management;

  6. Compliant with RoHs.


Applicable field:

  • Household energy storage system

  • Smart grid, microgrid system

  • Oil electric hybrid energy storage system

  • Mobile Container Storage System

  • Power grid frequency modulation energy storage system

  • Other energy storage systems

  • New energy communication base station, core computer room, IDC, UPS

  • Peak shifting energy storage system

  • New energy generation (solar, wind, photovoltaic/wind hybrid integration into energy storage systems)

  • Load tracking energy storage system


Application scenario:


SMS-51.2v100ah壁挂式电池         SMS-51.2v100ah壁挂式电池      SMS-51.2v100ah壁挂式电池


Product parameters:

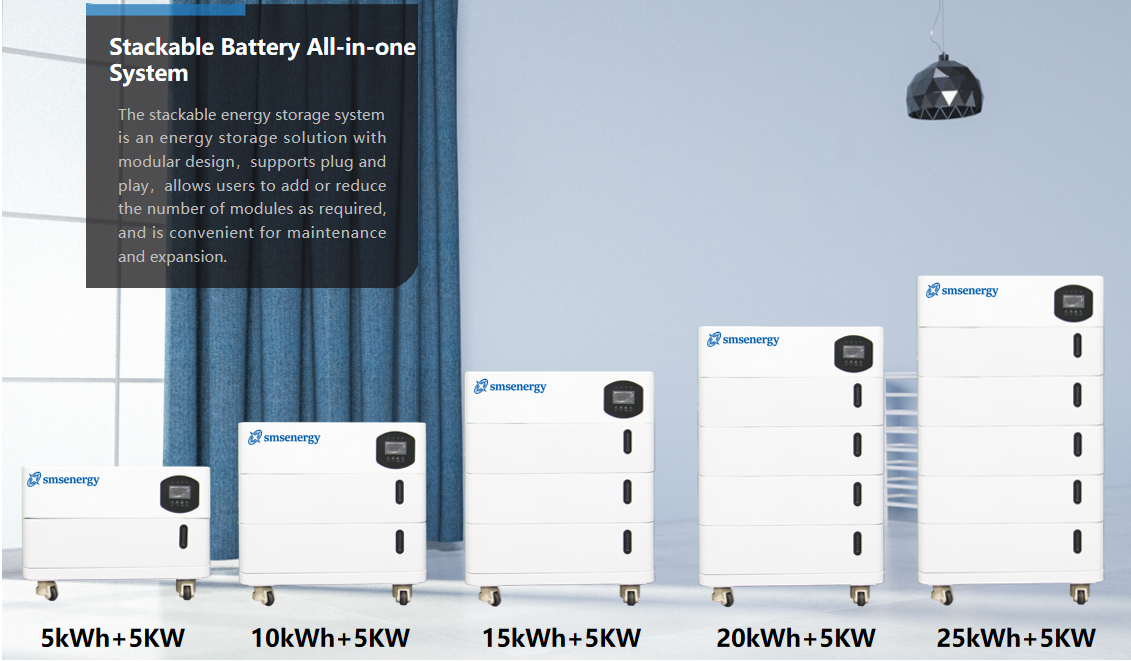

Stackable Battery All-in-one System


Model

5kWh+5KW

10kWh+5KW

15kWh+5KW

20kWh+5KW

25kWh+5KW

Voltage

51.2V

Capacity

100Ah

200Ah

300Ah

400Ah

500Ah

Communication Method

RS485/CAN

Hybrid Inverter Power

5KW

Charge Voltage

58V

Discharge Cut-off Voltage

42V

Charge Current

50V

Max Charge Current

100V

Discharge Current

50V

Max Discharge Current

100V

Max Peak Curren

200V

Power

5KW

Output Voltage

230VAC

Frequency

50Hz/60Hz

Max PV Power

5.5KW

MPPT Voltage Range

120~450VDC

Communication Connect

Port

RS485/WiFi

Material/Colour

Metal/White

Temperature Range

-15℃-50℃

Size

585*360*430mm

585*360*580mm

585*360*730mm

585*360*880mm

585*360*1030mm

Weight

59kg

103kg

 145kg

190kg

230kg
