Detailed introduction



Balcony System：


Product features:

  1. Capacity power supply cabinet;

  2. No Active cooling system is required;

  3. Operational reliability;

  4. Can be maintained for more than 10 years in an environment of 25 ℃;

  5. Optimize management;

  6. Compliant with RoHs.


Applicable field:

  • Household energy storage system

  • Smart grid, microgrid system

  • Oil electric hybrid energy storage system

  • Mobile Container Storage System

  • Power grid frequency modulation energy storage system

  • Other energy storage systems

  • New energy communication base station, core computer room, IDC, UPS

  • Peak shifting energy storage system

  • New energy generation (solar, wind, photovoltaic/wind hybrid integration into energy storage systems)

  • Load tracking energy storage system

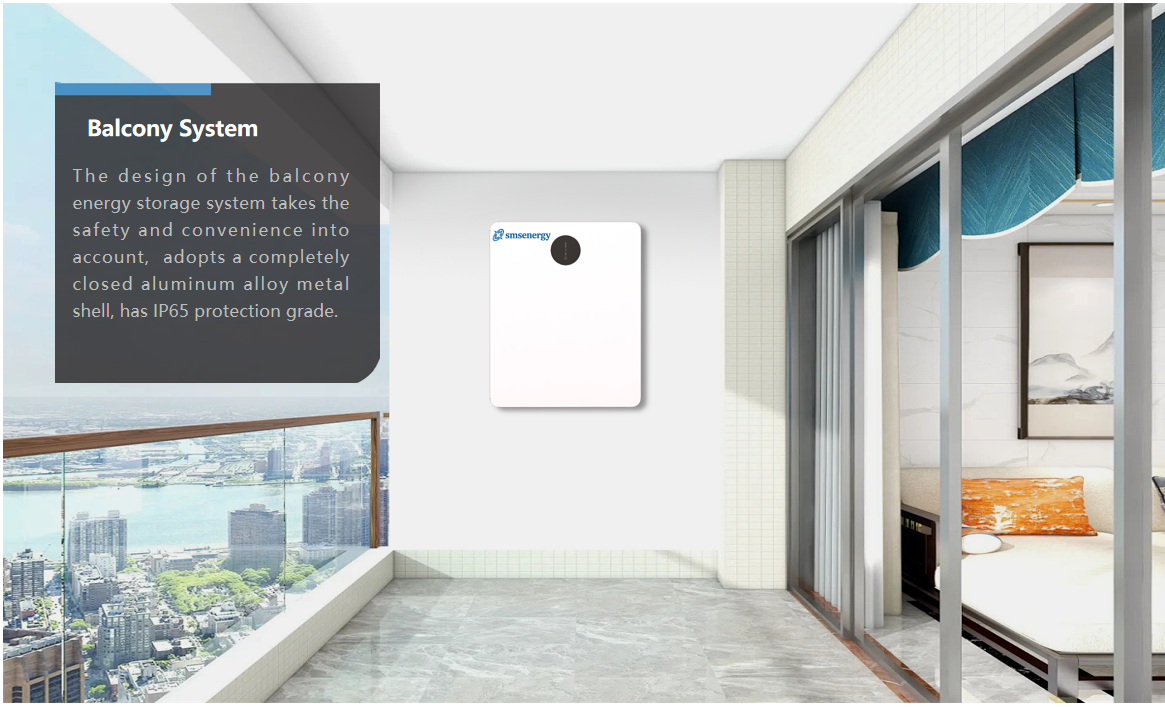

Application scenario:


SMS-51.2v100ah壁挂式电池         SMS-51.2v100ah壁挂式电池      SMS-51.2v100ah壁挂式电池


Product parameters:


Balcony System

ItemSpecifications
Battery ParameterModelSMS-2.56KWH-1KW
Battery TypeLiFePO4
Rated Capacity2.56KWh
Nominal Voltage51.2V
Voltage Range42V~58V
AC Parameter
(On Grid)		Rated Power800W or 600W
AC Frequency50Hz/60Hz
AC Wave FormPure Sine Wave
AC Parameter
(Off Grid)		Rated Power2KW
AC Voltage230Vac
AC Frequency50Hz/60Hz
PV ParameterRated Power1000W
Max Voltage60V
MPPT Voltage Range20V~50V
Max Current30A
Work EnvironmentWork Temperature-15~50℃
Work Humidity0~95%(non-condensing)
Work Atitude2000m
System ParameterWeight32.7kg
Size670*505*100mm
Protection LevelIP65
Installation MethodWall-Mount or Floor-Mount
Cooling MethodAluminum heat sink
