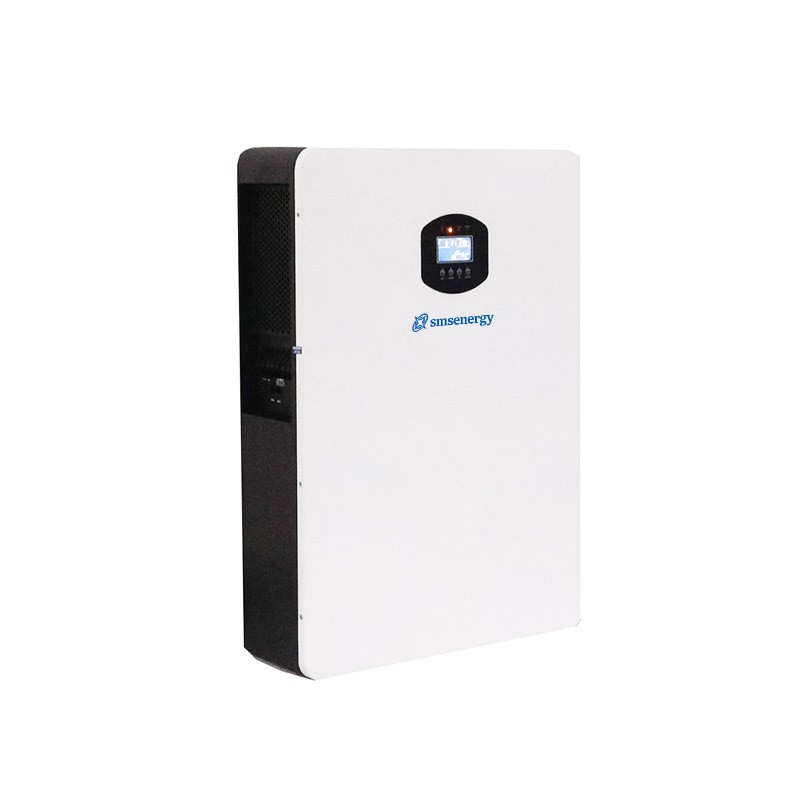

Wall-mounted All-in-one System

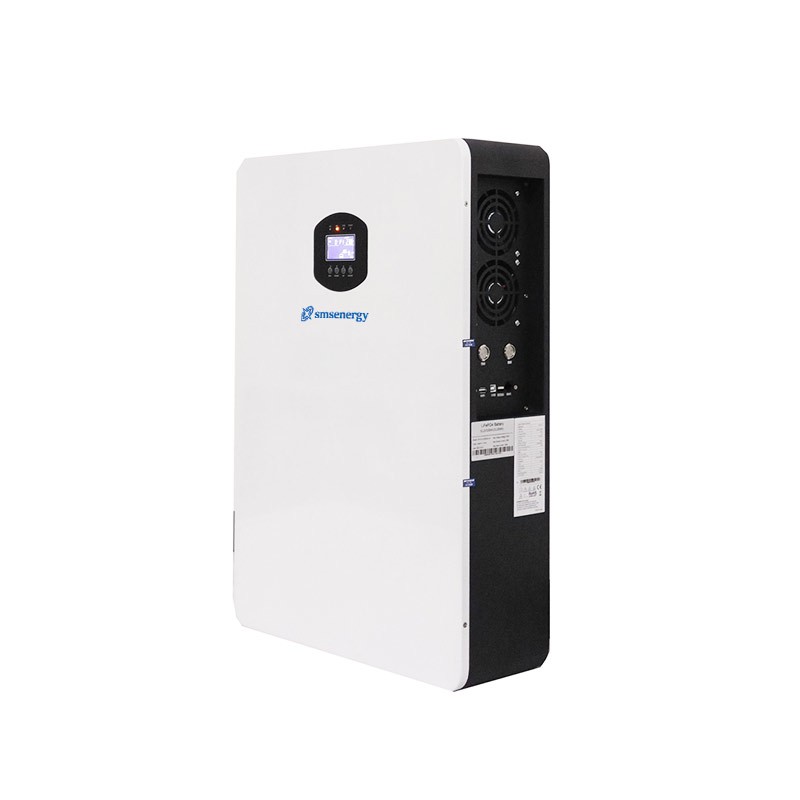

Wall-mounted All-in-one System

Wall-mounted All-in-one System

Wall-mounted All-in-one System

Basic parameters:

Core material: Lithium iron phosphate

Series parallel mode (S series, P parallel): 16S1P

Nominal voltage: 51.2V

Nominal capacity: 100Ah

Size (mm):450*150*600mm

Weight: 29kg

Color: optional

Parallel support: supports parallel wiring terminals

Output port method: wiring terminal

Charging method: CC/CP/VP

Charging current: 0.2C (standard)

Maximum charging current: maximum 0.5C @ 25 ℃

Charging cutoff voltage: 58.4V/CELL

Discharge method: CC/CP/VP

Discharge current: 0.5C

Maximum discharge current: maximum 0.6C @ 25 ℃

Discharge cutoff voltage: 44.8V

Display: LCD

Communication interface: RS485/RS232/CAN

Charging working temperature: Charging: 0~+50 ℃

Discharge working temperature: Discharge: -20~+55 ℃

Warranty period: 60 months

Wall-mounted All-in-one System

Wall-mounted All-in-one System

Wall-mounted All-in-one System

Wall-mounted All-in-one System

Basic parameters:

Core material: Lithium iron phosphate

Series parallel mode (S series, P parallel): 16S1P

Nominal voltage: 51.2V

Nominal capacity: 100Ah

Size (mm):450*150*600mm

Weight: 29kg

Color: optional

Parallel support: supports parallel wiring terminals

Output port method: wiring terminal

Charging method: CC/CP/VP

Charging current: 0.2C (standard)

Maximum charging current: maximum 0.5C @ 25 ℃

Charging cutoff voltage: 58.4V/CELL

Discharge method: CC/CP/VP

Discharge current: 0.5C

Maximum discharge current: maximum 0.6C @ 25 ℃

Discharge cutoff voltage: 44.8V

Display: LCD

Communication interface: RS485/RS232/CAN

Charging working temperature: Charging: 0~+50 ℃

Discharge working temperature: Discharge: -20~+55 ℃

Warranty period: 60 months

Detailed introduction

Wall-mounted All-in-One Series

Product features:

Capacity power supply cabinet;
No Active cooling system is required;
Operational reliability;
Can be maintained for more than 10 years in an environment of 25 ℃;
Optimize management;
Compliant with RoHs.

Applicable field:

Household energy storage system
Smart grid, microgrid system
Oil electric hybrid energy storage system
Mobile Container Storage System
Power grid frequency modulation energy storage system
Other energy storage systems
New energy communication base station, core computer room, IDC, UPS
Peak shifting energy storage system
New energy generation (solar, wind, photovoltaic/wind hybrid integration into energy storage systems)
Load tracking energy storage system

Application scenario:

Product parameters:

Item	Specifications
Battery Energy	2.56kWh+3KW	5kWh+5KW	10kWh+5KW
Nominal Voltage	25.6V	51.2V	51.2V
Charge Voltage	29V	58V	58V
Discharge Cut-off Voltage	20V	42V	42V
Battery Capacity	100Ah	100Ah	200Ah
Charge Current	50A
Max charge Current	50A	50A	100A
Dis charge Current	100A	100A	100A
Max Discharge Current	100A	100A	200A
Max Peak Current	150A	150A	300A
Communication Method	CAN/RS485
Power	3KW	5KW	5KW
Output Voltage	230VAC
Frequency	50Hz/60Hz
Input Power (PV)	3KW	5.5KW	5.5KW
Input Voltage Range (PV)	30-400VDC	120~450VDC	120~450VDC
Protection Degree	IP21
Material/Colour	Metal/White
Size	450150600mm	730500170mm	740485270mm
Weight	29Kg	52Kg	87.7Kg
