Detailed introduction

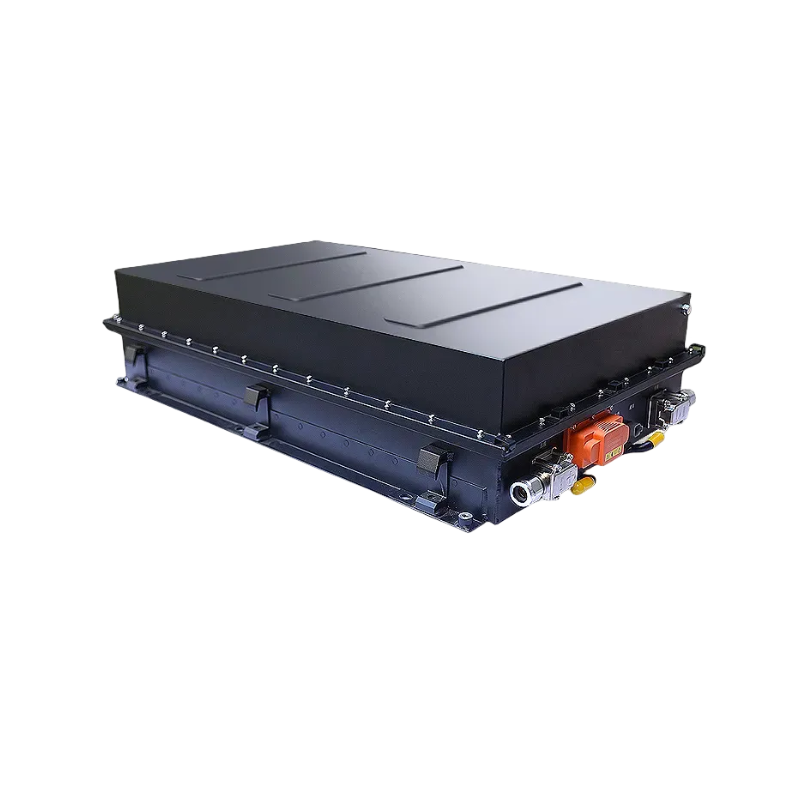

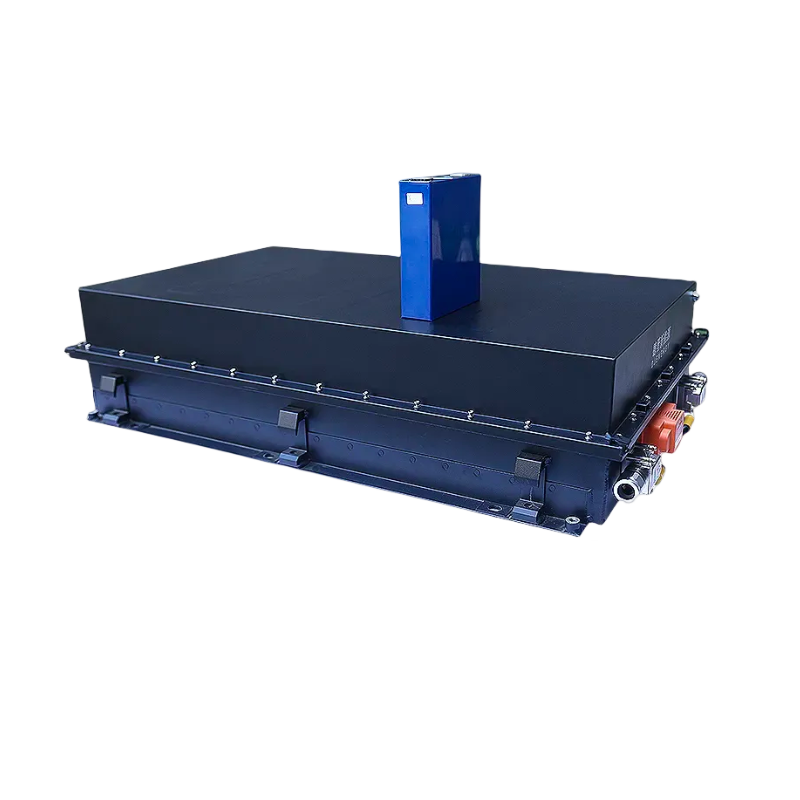

LFP Battery Module


MODELSMS153230
ELECTRICAL SPECIFICATIONS

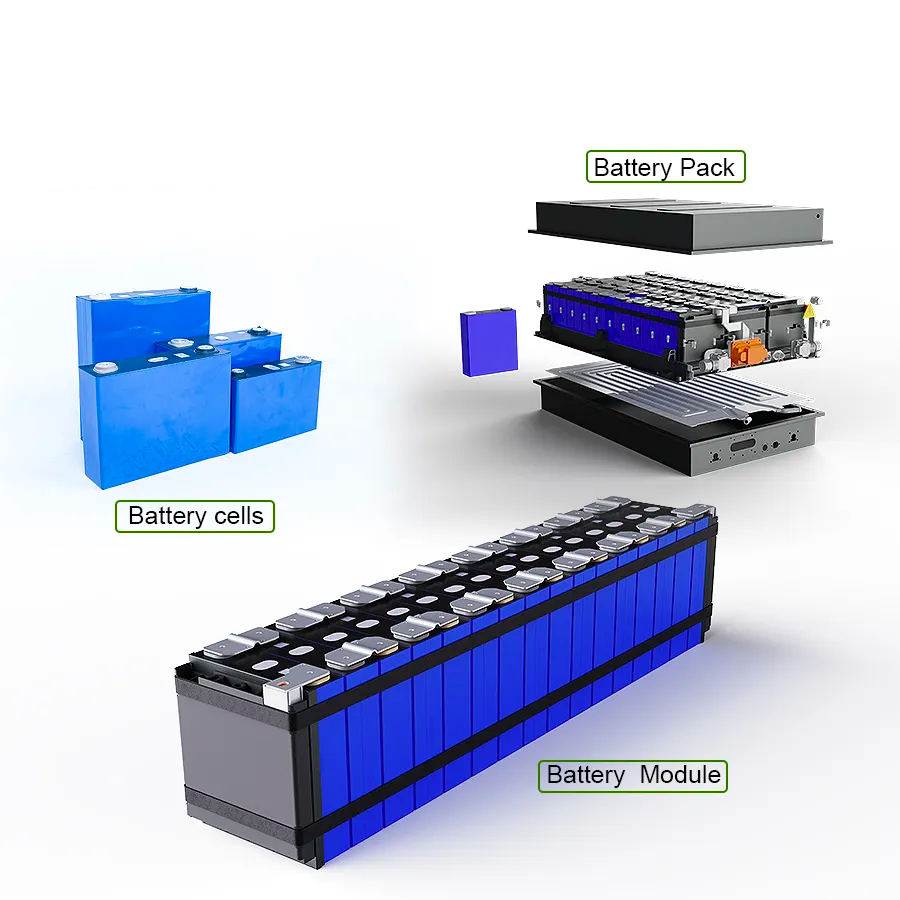

Cell Type - ChemistryPrismatic - LiFePO4
Rated Capacity230Ah
Rated Voltage153.6V
Energy35.3kWh
Resistance30m Ω
Self Discharge<4% per month
Maximum Modules in Series5
Maximum Modules in parallel4
MECHANICAL SPECIFICATIONS
Dimensions (L x W x H)1060*630*245mm
Weight250Kg
Enclosure ProtectionIP67
DISCHARGE/CHARGE SPECIFICATIONS
Discharge Cut-off Voltage120V
Max Continuous Discharging Current230A
Peak Discharge Current630A for 30 seconds
Recommended Discharge Current230A
CHARGE SPECIFICATIONS
Charging Limited Voltage175.2V
Max Charging Current230A
Recommended Charge Current115A
TEMPERATURE SPECIFICATIONS
Charge Temperature Range0~45C
Discharge Temperature Range-20~60C
Recommended Operating Temperature15~35C
Storage Temperature & Humidity Range
(Less than 1 month)
-20~35C, 45~75%RH
Storage Temperature & Humidity Range
(Less than 3 months)
- 10~35C, 45~75%RH
Recommended Storage Temperature & Humidity Range15~35C, 45~75%RH
OEM
Available on requestSize, C rate, Communication protocol
