Detailed introduction

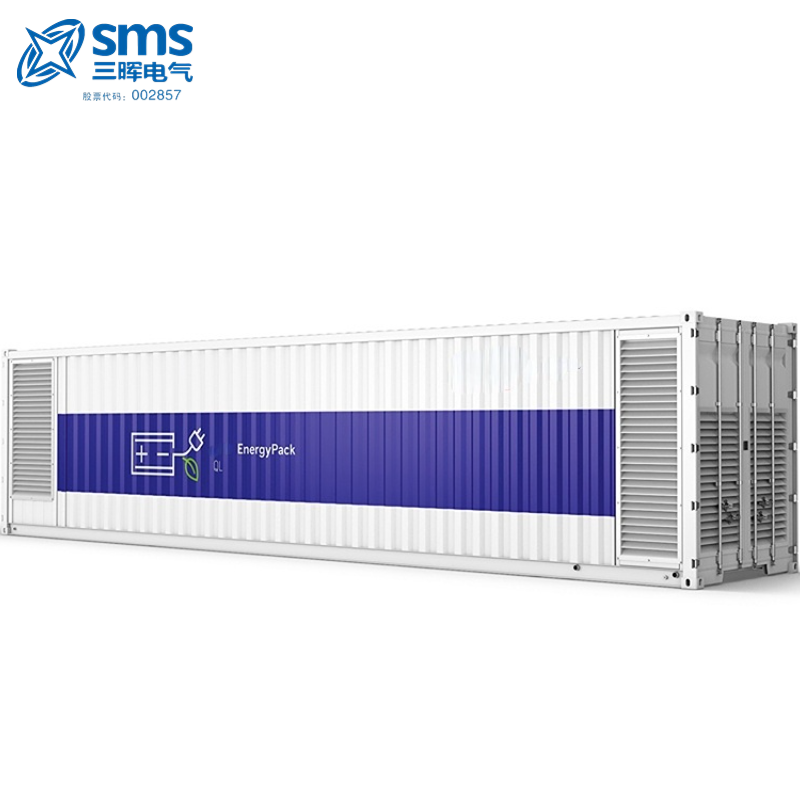

Model SMS-C198Y-40H
Battery typeLithium Iron Phosphate
Single cell3.2V/500Ah
Battery group form1 and 198 strings times 8
Rated capacity2534KWh@25℃
Rated voltage633.6V
Operating voltage495V-722.7V
Maximum charging current500A
Maximum discharge current500A
Cycle life≥8000 times (80%DOD, 0.5C, @25℃)
Energy conversion efficiency≥95%(0.5C/0.5C,@25℃)
Operating temperatureCharging: 0 ~ 55℃; Discharge: -30 ~ 55℃
Container type40 feet container high
Thermal designForced air cooling
Communication modeCAN,RS485,LAN
Equilibrium modeActive equilibrium/passive equilibrium



Solar Storage Inverter

Rated Power: 8~12KW

MPPT Voltage: 230/400V

Size (mm): 700*440*260mm


Off-Grid Energy Storage System All-in-one

Nominal voltage: 12.8V

Nominal capacity: 100Ah

Size (mm): 460*310*220


48/51.2V 300Ah 400Ah Standing Battery

Nominal voltage: 51.2V

Nominal capacity: 300Ah

Size (mm): 485*400*837
