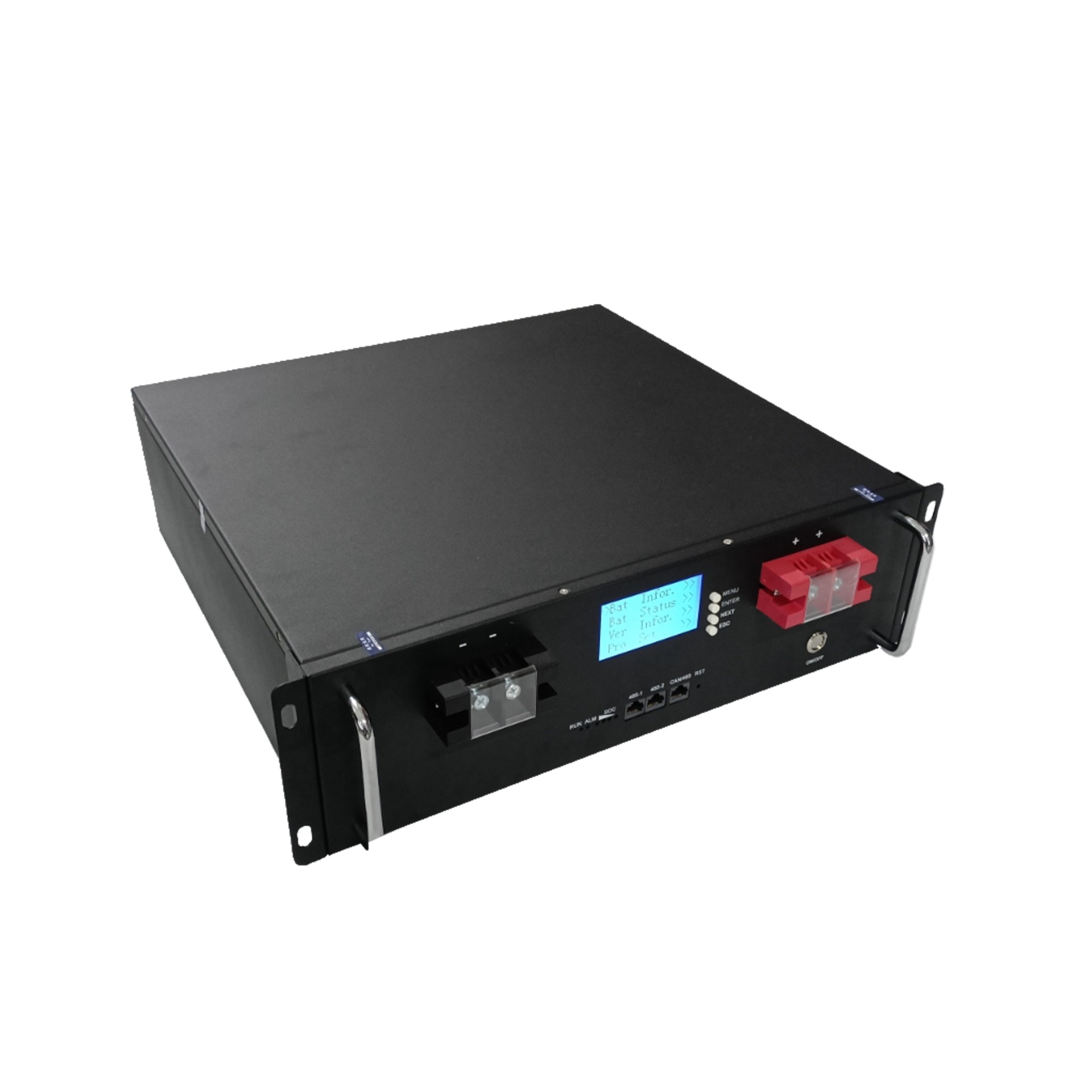

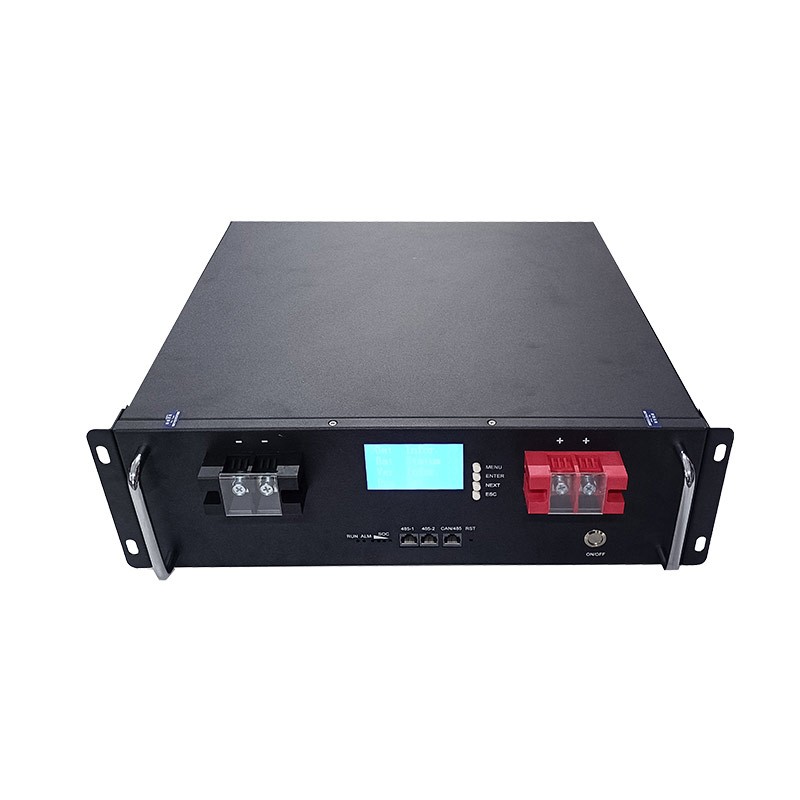

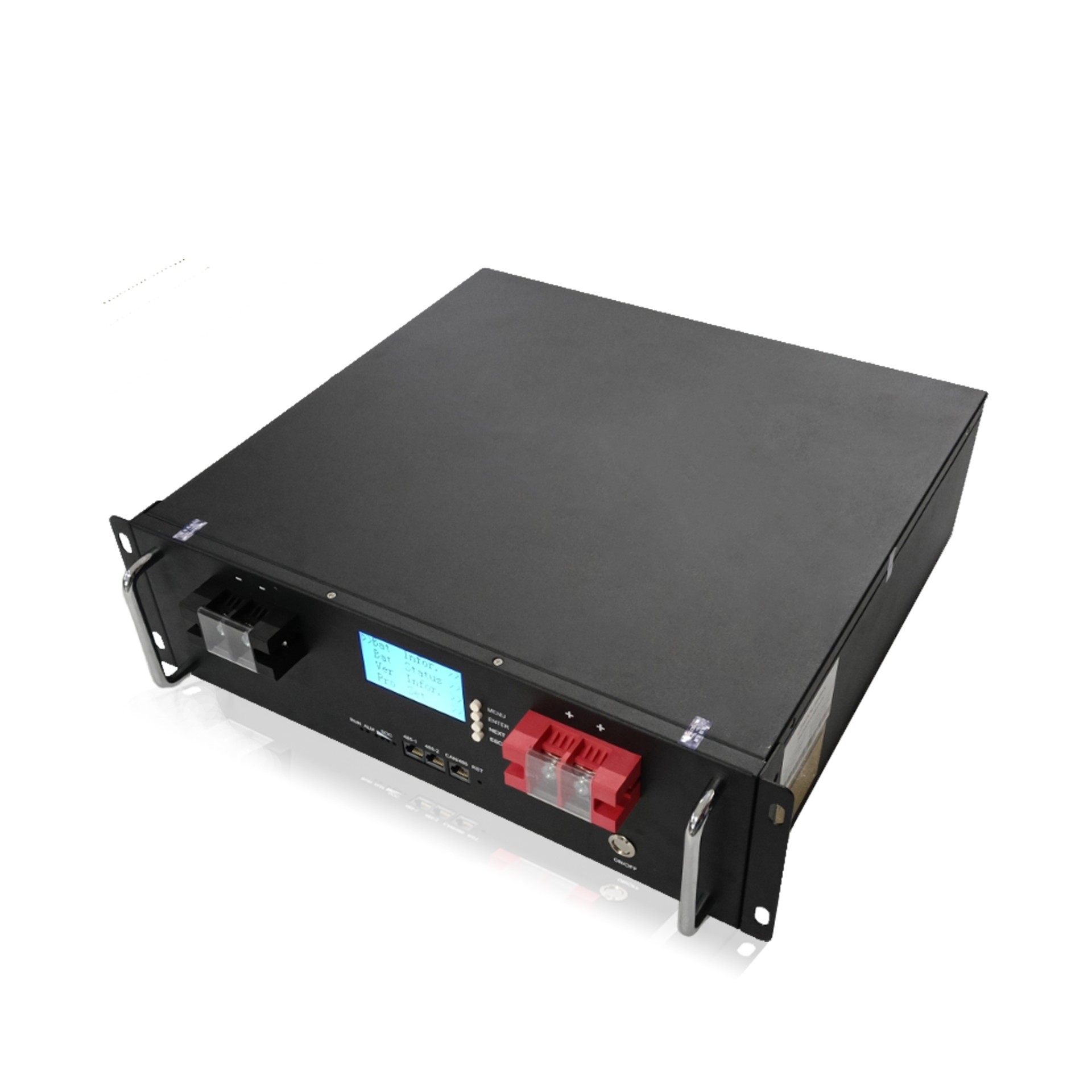

SMS-24V200Ah Rack Battery

Basic parameters:

Core material: Lithium iron phosphate

Series parallel mode (S series, P parallel): 15S1P

Nominal voltage: 24V

Nominal capacity: 100Ah

Size (mm): 565*535*360

Weight: 69kg

Color: optional

Parallel support: supports parallel wiring terminals

Output port method: wiring terminal

Charging method: CC/CP/VP

Charging current: 0.2C (standard)

Maximum charging current: maximum 1C @ 25 ℃

Charging cutoff voltage: 54.75V/CELL

Discharge method: CC/CP/VP

Discharge current: 0.5C

Maximum discharge current: maximum 1C @ 25 ℃

Discharge cutoff voltage: 42V

Communication interface: RS485/RS232

Charging working temperature: Charging: 0~+50 ℃

Discharge working temperature: Discharge: -20~+55 ℃

Warranty period: 36 months

SMS-24V200Ah Rack Battery

Basic parameters:

Core material: Lithium iron phosphate

Series parallel mode (S series, P parallel): 15S1P

Nominal voltage: 24V

Nominal capacity: 100Ah

Size (mm): 565*535*360

Weight: 69kg

Color: optional

Parallel support: supports parallel wiring terminals

Output port method: wiring terminal

Charging method: CC/CP/VP

Charging current: 0.2C (standard)

Maximum charging current: maximum 1C @ 25 ℃

Charging cutoff voltage: 54.75V/CELL

Discharge method: CC/CP/VP

Discharge current: 0.5C

Maximum discharge current: maximum 1C @ 25 ℃

Discharge cutoff voltage: 42V

Communication interface: RS485/RS232

Charging working temperature: Charging: 0~+50 ℃

Discharge working temperature: Discharge: -20~+55 ℃

Warranty period: 36 months

Detailed introduction

48V Lithium Iron Phosphate bracket series

Product features:

1、Capacity power supply cabinet;

2、No Active cooling system is required;

3、Operational reliability;

4、Can be maintained for more than 10 years in an environment of 25 ℃;

5、Optimize management;

6. Compliant with RoHs.

Applicable field:

Smart grid, microgrid system
Oil electric hybrid energy storage system
Mobile Container Storage System
Power grid frequency modulation energy storage system
Other energy storage systems
New energy communication base station, core computer room, IDC, UPS
Peak shifting energy storage system
New energy generation (solar, wind, photovoltaic/wind hybrid integration into energy storage systems)
Load tracking energy storage system

Application scenario:

Product parameters:

	Model	SMS-24100	SMS-24200
Electrical characteristics	Rated voltage (Vdc)	25.6	25.6
	Nameplate capacity (AH)	100	200
	Energy Storage (KWH)	2.56	5.12
	cycle life	≥6,000 cycles to 85% DOD	≥6,000 cycles to 85% DOD
	Months of self discharge	≤2%	≤2%
	Charging efficiency	From 100% to 0.2C	From 100% to 0.2C
	Discharge efficiency	From 96 to 99% to 1C	From 96 to 99% to 1C
Standard charging	Charging voltage	29.2Vdc	29.2Vdc
	Float charging voltage	29Vdc	29Vdc
	Charging mode	0.2C to 29.2V, then 29.2V charging current to 0.02C (CC/CV)
	Charging current (A)	20	40
	Maximum charging current (A)	100	200
	Charging cutoff voltage (VDC)	22.4	29.4
Standard discharge	Continuous current (A)	100	120
Standard discharge	Discharge cutoff voltage (VDC)	22.4	22.4
environment	Charging temperature	0 ℃ to 45 ℃ (32F to 113F) @ 60 ± 25% relative humidity
	Exhaust temperature	-20 ℃ to 60 ℃ (-4F to 140F) @ 60 ± 25% relative humidity
	Storage temperature	0 ℃ to 40 ℃ (32F to 104F) @ 60 ± 25% relative humidity
mechanical	Intellectual Property	IP60	IP60
	Material system	Lithium iron phosphate	Lithium iron phosphate
	Case materials	metal	metal
	Case type	Rack mounted	Rack mounted
	Packaging size L * W * H (mm)	475450（492）133	471440（482）266
	Packaging box size L * W * H (mm)	545530215	565535360
	Net weight (kg)	36	67
	Gross weight (kg)	38	69
	Termial	M8	M8
	Protocol (optional)	CANBus/RS485/RS232	CANBus/RS485/RS232
	SOC (optional)	LED/LCD	LED/LCD
